Model : NP3016T-16DI(RS-485)

Bộ chuyển đổi 16 cổng RS485/422 sang Ethernet NP3016T-16D(RS-485)

NP3016T-16DI(RS-485) is an high performance, industrial grade serial to Ethernet server, it can satisfy some kinds of customer requirements in consumption, temperature, volume and handle ability. It provides 16port RS-485/422(RS-485/422 connector: 5 bit terminal block) and 1 port 10/100Base-Tx Ethernet, can focus manage disperse serial device, master through network, easy, convenience. In application, can configure, upgrade through WEB.
Moreover, NP3016T-16DI(RS-485) provide strong function configuration tools based in Windows platform, it can guide user configure the device step by step, all configurations are coming true by WEB or Telnet, support cross-gateway and cross-router, user can can flexible configure IP address, server and client mode, data bag size etc.
NP3016T-16DI(RS-485) adopts EMC protection design, can work in rugged environment.

1.Support 10/100M Ethernet
2.Support 16 Port RS-485/422
3.Support WEB and Telnet configuration
4.Support TCP, UDP, ARP, ICMP, DHCP and DNS protocol
5.Support TCP Server, TCP Client, TCP Auto, UDP and
Real COM driver working mode
6.Support UDP multicast and UDP subnet mode
7.Support heartbeat time and time over disconnect function
8.Support cross-gateway and cross-router communication
9.Support virtual serial COM port access and Network interruption automatic recovery
10.Provide Windows configuration tools for easy to use, easy to bath install.
11.Industrial grade design, IP30 protection grade
12.No fan, low consumption design
13.Working temperature: -25~70℃

Ethernet port
Standard: 10Base-T, 100Base-TX
Protocol: Support TCP, UDP, APR, ICMP and DHCP
Signal: Rx+, Rx-, Tx+, Tx-
Speed: 10/100Mbps
Working: Full-duplex and half duplex
Working mode: Support TCP Server and Client
Transfer distance: 100m
Connector: RJ45
RS-485/422 port
RS-485/422 port number: 16
RS-422 signal: T+(A), T-(B), R+(A), R-(B),GND
RS-485 signal: D+(A), D-(B), GND
Parity bit: None, Even, Odd, Space, Mark
Data bit; 5bit,6bit,7bit,8bit
Stop bit: 1bit,1.5bit,2bit
Band rate: 300bps~115200bps
Loading: support 32 nodes loop back
Transfer distance: 1200m
Connector:4-bit terminal block
Protection: class 3 static, 1.5KVAC isolation
LED Indicator
Working statue indicator: RUN
Power (PWR)
Ethernet port connection statue (Link)
RS-485/422 port transmit data indicator: TX1~TX16
RS-485/422 port receive data indicator: RX1~RX16
Power requirements
Input Voltage: 85~265VAC/DC
No-load consumption: 8.8W@220VAC
Full-load consumption: 10.1W@220VAC
Mechanical
Shell: IP30 protection, metal shell
Installation: 1U 19” rack mount
Weight: 2500g

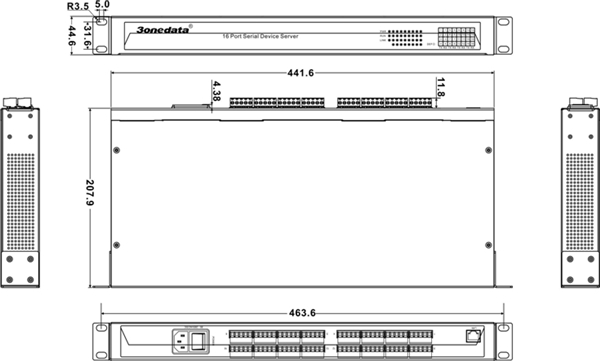

Size(L×W×H): 441.6mm×207.9mm×44.6mm
Environment limits
Working temperature: -25~70℃
Storage temperature: -30~85℃
Relative humidity: 5%~95%(non-condensing)
Standard
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty time: 3 years
Certificates
CE, FCC, RoHS, UL508(pending)
