Bộ chuyển đổi 4 cổng RS-232 sang Ethernet Modbus Gateway GW1104-4D(RS-232)


Lượt truy cập: 278 Lượt xem

Model : GW1104-4D(RS-232)

Bộ chuyển đổi 4 cổng RS-232 sang Ethernet Modbus Gateway GW1104-4D(RS-232)

GW1104-4D(RS-232) is an industrial Ethernet Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII protocols. It provides 4 port RS-232 serial (RJ45 connector) and 1 port 10/100M Ethernet.
Modbus TCP, Modbus RTU and Modbus ASCII protocol are integrated in the products, users can easily realize the seamless integration of Modbus Ethernet devices and Modbus serial devices and even multi master and slave hybrid networks. At the same time, the user can be set up by Web or Telnet. The simple design can not only realize the fast application, but also guarantee the application of the entire real industrial environment.
The products using EMC protection design. Power has over current, over voltage protection, and can work in rugged environment. The design supports 2 kinds of wall mounting installation, easy to use for your projects.

1.Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS protocol
2.Support 1 port 10/100M Ethernet
3.Support 4 Port RS-232
4.Support WEB and Telnet configuration
5.Convert between Modbus TCP and Modbus RTU/ASCII
6.Support RTU Slave, RTU Master, ASCII Slave, ASCII Master four operating modes
7.Support ID mapping function, to achieve the management of the host ID
8.300bps~115200bps baud rate and nonblocking communication
9.Support IP address and MAC address filtering function
10.Slave mode support 16 TCP master connections
11.Master mode support 32 slave TCP connection requests
12.Support Response Timeout and Interval Timeout setting
13.Support cross-gateway and cross-router communication
14.IP30 protection grade, metal shell, wall mounted installation
15.No fan, low consumption design
16.Working temperature: -40~75℃

Ethernet port
Standard: 10Base-T, 100Base-TX
Protocol: Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, APR, ICMP, DNS and DHCP
Signal: Rx+, Rx-, Tx+, Tx-
Speed: 10/100Mbps
Working: Full-duplex and half duplex
Transfer distance: 100m
Connector: RJ45
Serial port
Serial port number: 4 ports RS-232
RS-232 signal: TXD,RXD,RTS,CTS,GND
Parity bit: None, Even, Odd, Space, Mark
Data bit; 7bit, 8bit
Stop bit: 1bit, 2bit
Baud rate: 300bps~115200bps
RS-232 transfer distance: no more than 15m
RS-232 connector: RJ45
Master mode: 32 TCP slaves
Slave mode: 16 TCP masters
Work mode: RTU Slave, RTU Master, ASCII Slave, and ASCII Master
LED Indicator
Power (PWR)
Device start delay and running status indicator: RUN
Ethernet port connect status (Link)
Serial port data indicator: TX1~TX4, RX1~RX4;
Power requirements
Input voltage: 9~48VDC
No-load consumption: 0.86W@12VDC
Full-load consumption: 1.2W@12VDC
Environment limits
Working temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95%(non-condensing)
Mechanical
Shell: IP30 protection, metal shell
Installation: Wall mounting
Weight: 0.46kg

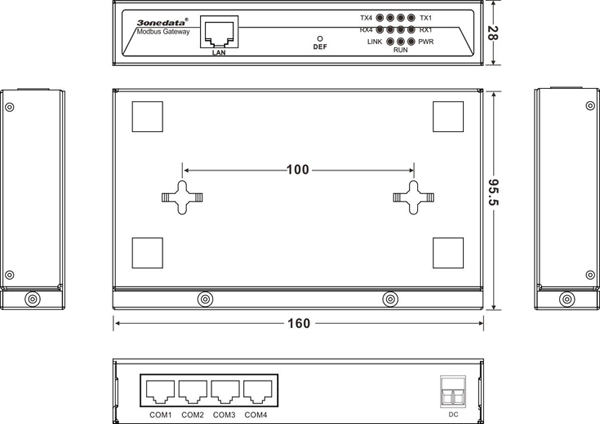

Size (L×W×H): 160mm×95.5mm×28mm
Standard
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 61000-4-2 (ESD), Level 3
EN61000-4-4 (EFT), Level 2
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty time: 3 years
Certificates
CE, FCC, RoHS, UL508 (pending)
Packing List
1. GW1104-4D(RS-232)-P(9~48VDC) ×1
2. User manual ×1
3. Straight network cable ×1
4. Power adapter ×1
5. CD ×1
6. Warranty card ×1
7. Certificate of quality×1
8. Hangers ×2
9. Mat ×4
Optional accessories:
  DIN-Rail Mounting Kit (35mm) ×1
