Bộ chuyển đổi 8 cổng RS-232 sang Ethernet NP308T-8D(RS-232)

np308t-8drs-232
np308t-8drs-232


Lượt truy cập: 1516 Lượt xem

Model : NP308T-8D(RS-232)
Bộ chuyển đổi 8 cổng RS-232 sang Ethernet NP308T-8D(RS-232)

1.Support 10/100M Ethernet
2.Support 8 Port RS-232
3.Support WEB and Telnet configuration
4.Support TCP, UDP, ARP, ICMP, DHCP and DNS protocol
5.Support TCP Server, TCP Client, TCP Auto, UDP and
Real COM driver working mode
6.Support UDP multicast and UDP subnet mode
7.Support heartbeat time and time over disconnect function
8.Support cross-gateway and cross-router communication
9.Support virtual serial COM port access and Network interruption automatic recovery
10.Provide Windows configuration tools for easy to use, easy to bath install.
11.Industrial grade design, IP30 protection grade
12.No fan, low consumption design
13.Working temperature: -40~85℃

1.Support 10/100M Ethernet
2.Support 8 Port RS-232
3.Support WEB and Telnet configuration
4.Support TCP, UDP, ARP, ICMP, DHCP and DNS protocol
5.Support TCP Server, TCP Client, TCP Auto, UDP and
Real COM driver working mode
6.Support UDP multicast and UDP subnet mode
7.Support heartbeat time and time over disconnect function
8.Support cross-gateway and cross-router communication
9.Support virtual serial COM port access and Network interruption automatic recovery
10.Provide Windows configuration tools for easy to use, easy to bath install.
11.Industrial grade design, IP30 protection grade
12.No fan, low consumption design
13.Working temperature: -40~85℃

Ethernet port
Standard: 10Base-T, 100Base-TX
Protocol: Support TCP, UDP, APR, ICMP and DHCP
Signal: Rx+, Rx-, Tx+, Tx-
Speed: 10/100Mbps
Working: Full-duplex and half duplex
Working mode: Support TCP Server and Client
Transfer distance: 100m
Connector: RJ45
RS232 port
RS232 port number: 8
RS-232 signal: DCD, RXD, TXD, DTR, GND, DSR,  RTS, CTS
Parity bit: None, Even, Odd, Space, Mark
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1bit, 1.5bit, 2bit
Band rate: 300bps~115200bps
Loading: point to point
Transfer distance: no more than 15m
Connector: RJ45
Protection: class 3 static
LED Indicator
Working statue indicator: RUN
Power (PWR)
Ethernet port connection statue (Link)
RS232 port transmit data indicator: TX1~TX8
RS232 port receive data indicator: RX1~RX8
Power supply
Input voltage: 12VDC(9~48VDC)
No-load consumption:1.43W@12VDC
Full-load consumption: 1.98W@12VDC
Environment limits
Working temperature: -40~85℃
Storage temperature: -40~85℃
Relative humidity: 5%~95%(non-condensing)
Mechanical
Shell:  IP30 protection, metal shell
Installation: Wall mounting
Weight: 524g
Size (L×W×H): 160mm×95.5mm×28mm
Standard
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty time: 3 years
Certificates
CE, FCC, RoHS, UL508(pending)

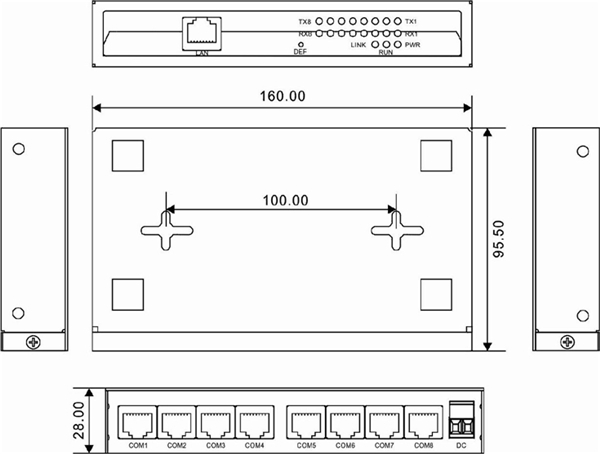

20160113175850_172

NP308T-8D(RS-232) Datasheet

np308t-series-instructions

NP308T-8D(RS-232) Software Manual

NP308T-8D(RS-232) CLI Manual

NP308T-8D(RS-232):
8-port RS-232 to Ethernet(10/100M) Converter, wall mounting, 9~48VDC
