Bộ chuyển đổi Balun 75ohm-120ohm TLC703


Lượt truy cập: 441 Lượt xem

Model : TLC703

Bộ chuyển đổi Balun 75ohm-120ohm TLC703

TLC703 is a G.703 balance to unbalance converter, it solved the signal convert problem between 75ohm copper shaft to 120 ohm, twisted-pair adopt TLC703, users can complete 75ohm copper shaft communication only use usually 120ohm twisted-pair copper shaft.

1. Plug-and-play, small volume, easy installation
2. No power supply needed, no consumption
3. 1.6 or 5.6 BNC connector

Standard: ITU/CCITT G.703
twisted-pair signal:  T+, T-, R+, R-, GND
Copper signal:  TX, RX
Working: Transparent convert
Baud rate: 2Mbps
Isolation: 1000V
Interface style: BNC(75 ohm, unbalance)
RJ45(100 ohm, balance)
Environment, Power and Dimension
Working temperature: -40 to 80°C
Storage temperature: -40 to 85°C
Relative humidity: 5% to 95%
Input power: No power supply needed
Consumption: No consumption

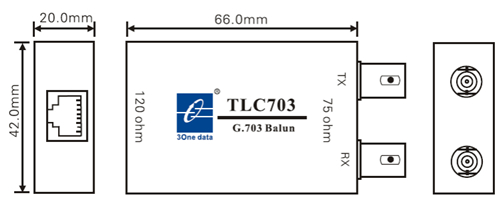

L×W×H: 66mm×42mm×20mm
Shell: Iron
Color: Black or white
Weight: 50g
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals

tlc703

tlc703-datasheet

tlc703-usermanual

TLC703:
2M G.703 balance(120ohm) to unbalance(75ohm) Converter
