Bộ chuyển đổi E1 Ethernet sang Quang FE – E1 MODEL7213S

7213s
7213s


Lượt truy cập: 563 Lượt xem

Model : MODEL7213S

Bộ chuyển đổi E1 Ethernet sang Quang FE – E1 MODEL7213S

MODEL7213S is an E1 or Ethernet to Fiber Optic Converter with fiber optic interface is a multifunction and high performance L2 switch which build in three port cross engine to realize the conversion between two Ethernet interface and E1 interface. The equipment supports the function used as Ethernet transceiver or Ethernet net bridge or fiber optic modem. As the extension of Ethernet, This converter may realize Ethernet interconnection at low cost via the E1 channel provided by existing network.
The optical Ethernet Interface Converter( also as Optical Ethernet Interface bridge) is a high performance, which accomplishes the converting between the 10/100M Ethernet port,the 100M Ethernet Optic Interface and E1 interface. As an extended device of the Ethernet, the optical Ethernet Interface Converter realizes interconnection of two Ethernet by using the E1 channel provided by exiting networks with the low-cost.

1. Rate N×64Kbit/s (N=1~32)
2. Support the loopback of local analog/digital interface
3. Support pseudo-random code test function
4. Supports conversion between:
(1)10/100Base-TX and 100 Base-FX
(2)10/100Base-TX and G.703
(3)100base-FX and G.703
5. Available with independent structure and 19-inch Rack-mountable structure Rack-mountable structure can be inserted with 16 modules
6. AC 220V and DC –48V inputs may be selected for both structure
7. For Rack-mountable fiber optic modems, dual power supply heat backup is provided to ensure a high operating reliability

Protocol:  G.703, G.704, G.736, G.823, I.431,IEEE802.3 10BASE_T
Circuit interface (E1):  Impedance: 75Ω, physical interface: BNC
Impedance: 120Ω, physical interface: RJ45
interface rate: framing: N×64Kbps(N=0~32);  un-framing: 2.048Mbps
Coding: HDB3,Jitter tolerance in accordance with G.823 Output jitter < 0.05UI
Data interface (100BASE_T): Impedance: 100Ω, physical interface: RJ45
Interface rate: 100Mbps
Coding: Manchester
Cable: 75Ωcoaxial-cable, UTP5 twisted pair
Transmission range: circuit interface: BNC: 600m; RJ45: 300m; Data interface: 100m
Optical line code type: CMI
Optical line code rate: 100Mbps
Wavelength: 850nm,1310nm,1550nm
Optical Connecter: SC/PC
Optical type: multi mode , single mode
Transmission distance: single mode: the max distance is 120Km
Multi mode: the max distance is 2Km
Indicator: indicating power, connection states of data and circuit interfaces, operation state, test state and trouble alarm.

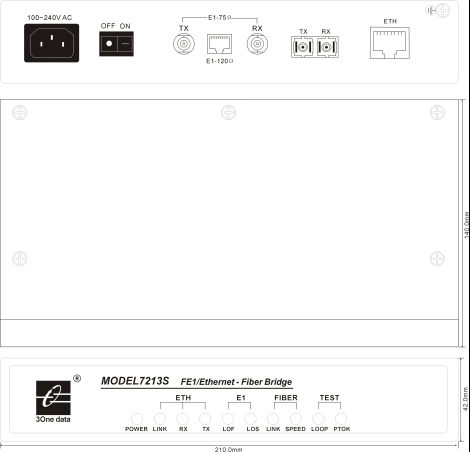

Dimensions: Stand alone: 154mm (depth) × 190mm (width) × 37mm (height)
Rack mount: 19in standard 4.5U cabinet
Power supply: Stand alone: 160V~270V AC input, 5V/2A output
-40V~-60V DC input,5V/2A output
Rack mount:150V~260V AC input,5V/16A,12V/1A output
-38V~-58V DC input,5V/16A,12V/1A output
Power dissipation: 3W
Operational temperature: 0° C ~50° C
Storage temperature: -20° C~80° C
Humidity: 5%~90% (no condensation)
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals

model7213s

model7213s-usermanual

model7213s-datasheet

MODEL7213S:
E1/Ethernet to Fiber Optic Converter, AC220V or DC-48V optional
