Bộ chuyển đổi Ethernet sang quang FE1 MODEL7305

a9
a9


Lượt truy cập: 142 Lượt xem

Model : MODEL7305

Bộ chuyển đổi Ethernet sang quang FE1 MODEL7305

MODEL7305 Optical Fiber Modem is a high-performance optic modem developed by using a dedicated integrated circuit. It is to modulate a N×64K Ethernet data signal directly over single or multi-mode optic fiber for a transmission via optic cablMe line. At another end of the optic cable, optical signal is demodulated into an Ethernet data signal. Ethernet interface may be directly connected with the Ethernet interfaces of image and data terminals or the WAN ports of MUX, exchanger and router for a dedicated network setup or a LAN connection

1. Rate N×64Kbit/s (N=1~32)
2. Support the loopback of local analog/digital interface
3. Support remote loopback function
4. Support pseudo-random code test function
5. 120km trunking -free transmission distance for single-mode optic fiber
6. Capable to be communicated with FE1 Fiber Modem
7. Available with complete line detection and alarm indications
8. Available with independent structure and 19-inch Rack-mountable structure Rack-mountable structure can be inserted with 16 modules
9. AC 220V and DC –48V inputs may be selected for fiber optic modems of both structure
10. For Rack-mountable fiber optic modems, dual power supply heat backup is provided to ensure a high operating reliability

Optic interface
Line mode type: CMI
Line mode rate: 2.048Mbps
Operating wavelength: 850nm,1310nm or 1550nm
Optic fiber connector: SC/PC
Applicable optic fiber : multi-mode, single-mode
Transmission distance: Single-mode: up to 120km
Multi-mode: up to 2km
ETH interface
Data Rate: 10/100Mbps auto-negotiation
Standard: Compatible with IEEE802.3
Type of connector: RJ45 connector
Full duplex auto-negotiation
Indicator lamps
To indicate the operating status of power supply, data receiving/sending, loopback and random code test, code missing alarm, out-of-frame alarm etc.

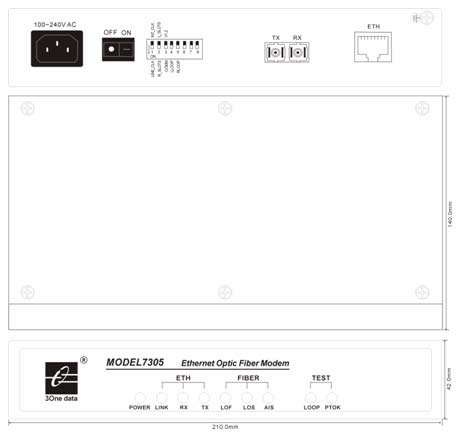

Structure
Independent: 140mm (depth) x 210mm (width) x 42mm (height)
Rack-mountable: 19in 4.5U standard casing
Power supply
Independent: 85V~264V AC input, 5V/2A output
-36V~-72V DC input , 5V/2A output
Rack-mountable: 150V~260V AC input, 5V/16A , 12V/1A output
-38V~-58V DC input, 5V/16A , 12V/1A output
Power consumption: 3W
Operating temperature: 0°C~50°C
Storage temperature: -20°C~80°C
Humidity: 5%~90% (free of condensate)
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals

model7305

model7305-datasheet

MODEL7305:
Ethernet to Fiber Optic Modem, AC220V or DC-48V optional
