Model : MODEL7304

Bộ chuyển đổi V.35 sang quang MODEL7304

MODEL7304 is a high-performance V.35 optic fiber modem developed by using a dedicated integrated circuit. It is to modulate a N×64K V.35 data signal directly over single or multi-mode optic fiber for a transmission via optic cable line. At another end of the optic cable, optical signal is demodulated into a V.35 data signal. V.35 interface may be directly connected with the V.35 interfaces of image and data terminals or the WAN ports of MUX, exchanger and router for a dedicated network setup or a LAN connection.

1. Rate N×64Kbit/s (N=1~32)
2. Support the loopback of local analog/digital interface
3. Support remote loopback function
4. Support pseudo-random code test function
5. 120km trunking -free transmission distance for single-mode optic fiber
6. Capable to be communicated with FE1 Fiber Modem
7. Available with complete line detection and alarm indications
8. Available with independent structure and 19-inch Rack-mountable structure Rack-mountable structure can be inserted with 16 modules
9. AC 220V and DC –48V inputs may be selected for fiber optic modems of both structure
10. For Rack-mountable fiber optic modems, dual power supply heat backup is provided to ensure a high operating reliability

Fiber Optic interface
Line mode type: CMI
Line mode rate: 2.048Mbps
Operating wavelength: 850nm,1310nm or 1550nm
Optic fiber connector: SC/PC
Applicable optic fiber : multi-mode, single-mode
Transmission distance: Single-mode: up to 120km
Multi-mode: up to 2km
V.35 interface
Data rate: N×64Kbps (N=1~32)
Available with CTS/RTS (Hardware) flow control function
Type of connector: M34 connector
Operating mode: DCE
Indicator lamps
To indicate the operating status of power supply, data receiving/sending, loopback and random code test, code missing alarm, out-of-frame alarm etc.

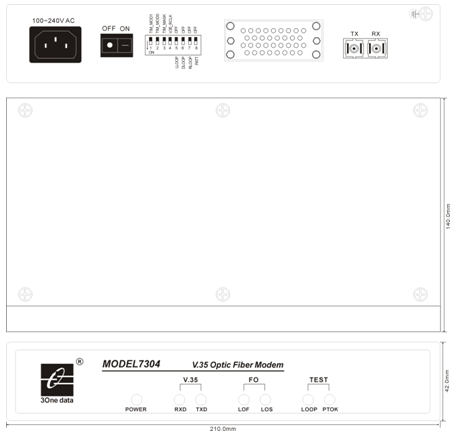

Structure
Independent: 140mm (depth) x 210mm (width) x 42mm (height)
Rack-mountable: 19in 4.5U standard casing
Power supply
Independent: 85V~264V AC input, 5V/2A output
-36V~-72V DC input , 5V/2A output
Rack-mountable: 150V~260V AC input, 5V/16A , 12V/1A output
-38V~-58V DC input, 5V/16A , 12V/1A output
Power consumption: 3W
Operating temperature: 0°C ~50°C
Storage temperature: -20°C ~80°C
Humidity: 5%~90% (free of condensate)
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals

model7304-datasheet

model7304-usermanual

MODEL7304:
V.35 to Fiber Optic Modem, AC220V or DC-48V optional

model7304
