Model : RACK2000B

Khung giá 16 khe cắm bộ chuyển đổi quang điện RACK2000B

RACK2000B for Media converter adapt integration management media converter Rack in machine room. Each Rack have 16 insert slots, can insert 1-16 different media converter modules. Redundant Power Supply, support hot-swappable, provide credibility, high effect and economic solutions for network system

1.Adopt insert-draw design, Easy to load and unload, Plug-and-play, support hot-swappable
2. 19 inch 2U, easy to install
3. Each Rack have 16 insert slots, can insert 1-16 different media converter modules, high capability, easy to upgrade
4. Full aluminums metal shell, high shield, high anti-jamming
5. Adopt auto-adapt technology. Do not adjust electrics and optics when installation
6. Redundant Power Supply, Low consumption, and credibility
7. Full working indicator light, easy to maintenance
8. Average no MTBF is up to 50 thousands, accord to telecom standard

Parameter
Working Temperature:0°C to 50°C
Storage Temperature:-40°C to 85°C
Relative Humidity:5%~95%

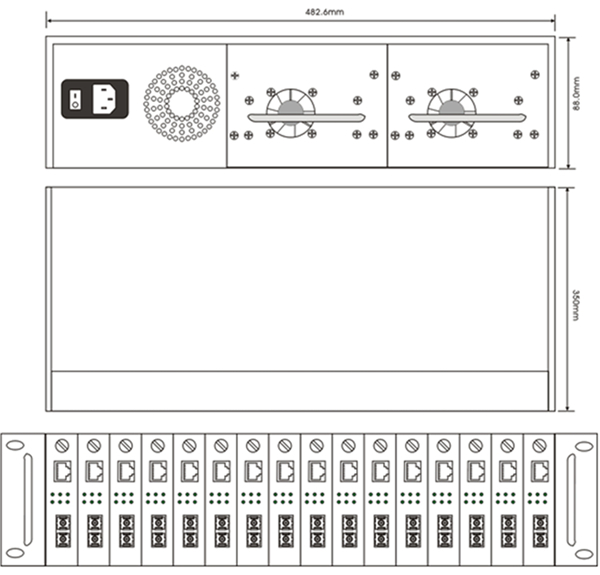

Dimension:482.6mm×350mm×88mm(L×W×H)
19 Inch 2U
Power supply Require
Input:AC  100~260V,50~60HZ, or DC -48V
Out put:DC +5V
Consumption:<60W
Wave:≤50mv
Noise:≤50mv
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals

rack2000b

rack2000b-usermanual

rack2000b-datasheet

RACK2000B:
16 Slots Ethernet Media Converter Rack with dual power supply, 2U 19″, AC/DC optional
