Splitter 1 cổng PoE Ethernet, 1 cổng Ethernet PD101-12V-15W

Lượt truy cập: 256 Lượt xem

Model : PD101-12V-15W

Splitter 1 cổng PoE Ethernet, 1 cổng Ethernet PD101-12V-15W

PD101-12V-15W is Cost-efficient single-port IEEE 802.3af/at compliant PoE splitter, High-reliability performance,Work with IEEE 802.3af/at compliant PoE switch or PSE Injector,Can get separated data and power output from standard PoE cable and supply data and power separately for devices that not support PoE power.
PD101-12V-15W Provides three different DC output: 5V/9V/12V, which enables it works with different kinds of end devices,Improves network flexibility and expansibility by solving the connection problem between PoE power supply and PoE-unsupported devices,Can be widely used in wireless city projects and Security Surveillance Industry.

1.Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W), can supply power to PDs compliant with the two standards
2.The “ PoE data in” port supports a voltage range of 36-57V, can auto-response to the power supply from PSE power module
3.Supports 3 different DC output modes: 5V/9V/12V, can easily get devices that not support PoE power connected with PoE network devices.
4.Comes with 4 different types of DC plugs, can easily handle with different connections
5.Supports Circuit Isolation Protection, provides good protection for the PDs

POE Standard: IEEE802.3af/at
Fixed ports: 2*10/100M Base-T Ports(including one POE ports)
POE Pin-out: 1/2(+), 3/6(-); Customized 4/5(+), 7/8(-)
Physic Medium:
10/100Base-TX: UTP category 3/4/5 cables( Maximum 100m)
Network Cable Deployment: Support Auto-MDIX function, can automatically identify straight forward cable and cross-over cable
Negotiation Pattern: Support port auto-negotiation function ( automatically negotiate transmission rate and Duplex modes)
Indicator light:
LED Indicator: Power indicator( green light)
Max Output Power(single port): 15.4W
Input Power Supply: DC 48V/0.3A
Output Voltage: 5V/2A; 9V/1.1A; 12V/1A
DC Plugs: 5.5*2.1mm (outer diameter*inner diameter)
Working Environment:
Operation Temperature: -20~50°C
Storage Temperature: -40~70°C
Operation Humidity:10%~90%(non-condensing)
Storage Humidity:5%~90%(non-condensing)

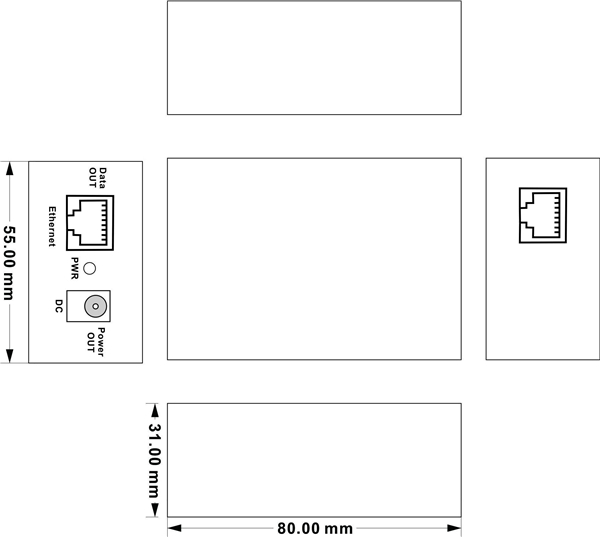

Mechanical Properties:
Weight: 145g
Warranty time: 3 years




10/100M Ethernet, IEEE 802.3af, 15W
