Switch công nghiệp 8 cổng Ethernet IES618


Lượt truy cập: 204 Lượt xem

Model : IES618

Switch công nghiệp 8 cổng Ethernet IES618

IES618 is a type of WEB managed redundant Industrial Ethernet Switch, which support 8 * 10/100M Ethernet ports(RJ45) , double power supply input and 1 route relay output. It supports SW-Ring patented technology (self-recovery time <20ms) to enhance the reliability of the network. What’s more, IES618 supports several network managements, such as 802.1QVLAN, QoS, IGMP, port trunking and port mirroring. It has got the certification of CE, FCC and Industrial level 4 standard. It can meet the requirement of each type of industrial environment with the temperature range of -40 to 75 ℃.

1.  Support 8 RJ45 Ethernet ports
2.  SW-Ring(recovery time < 20 ms at full load)
3.  Port-based VLAN, IEEE 802.1Q VLAN to ease network planning
4.  Support IEEE802.1p_QOS
5.  Support IGMP, Port Trunking and Port mirroring function
6.  Support WEB management, easy- to-use
7.  Design for industrial Level 4 standard
8.  IP40 protection, rugged high-strength metal case
9.  DIN-Rail or panel mounting

Technology
Standard: IEEE802.3IEEE802.3uIEEE802.3xIEEE802.1QIEEE802.1pIEEE802.1DIEEE802.1W
Protocol:SW-Ring、STP/RSTP、QoS、VLAN、IGMP v1/v2/v3、SNMP v1/v2c、Telnet
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system
SW-Ring: Support Single, Couple, Chain, Dual homing
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 2.0G
MAC address table: 2K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
Console port: debug serial port carry out CLI command
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link (1~8)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC (12~48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support reverse polarity protection
Support overload current protection
Consumption
No-load consumption: 1.7W@24VDC
Full-load consumption: 3.6W@24VDC
Working environment
Working temperature: -40~75℃
Storage temperature: -40~85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounting
Weight: 800g
Size (W×H×D): 136 mm×52mm×105mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES618(plus terminal block) × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1

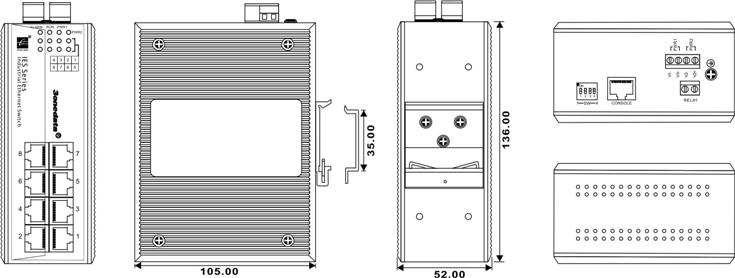

ies618-kt

ies618-datasheet

ies618-usermanual

ies618-software-manual

IES618:
8-port 10/100Base-T(X) Industrial Ethernet Switch, Web managed , DIN-Rail mounting, 12-48VDC
