Thiết bị cắt sét RS-485 FL485

a13
a13


Lượt truy cập: 178 Lượt xem

Model : FL485

Thiết bị cắt sét RS-485 FL485

IEC61000-4-5 and ITU-TK20&K21 are the recognized standards for top quality surge protectors, FL485 have high respond speed, low output rudimental voltage, ascendance transfer performance. All have #10 ground screws which must be connected to a solid ground.

1. Three stages of protection on every data line
2. Protected signal ground connection
3. Easy to install, plug-and-play
4. 4500V surge protection

Standard: Accord EIA RS-485 standard
RS485 signal: IEC6100-4-5 and ITU-TK20&21
Working voltage: 0-5V
Limit voltage: <15V
Apply Band rate: 1Mbps
Isolate signal: TXD, RXD, GND
Connector: Standard industrial terminal block
Insert consumption: <0.5dB
Delay time: <1ns
Environment
Working temperature:-40 to 85C
Storage temperature:-25 to 85
Humidity: Relative humidity 5% to 95%
Power
Input powered: No power supply needed
Consumption: No consumption

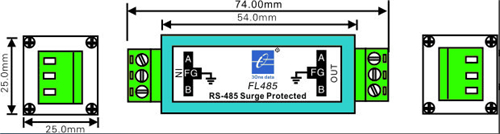

Dimension
L×W×H: 80mm×25mm×22mm
Shell: Alnico
Color: Blue
Weight:10g
Warranty: 3 years
Approvals: FCC,CE, RoHS approvals

kt13

fl485-usermanual

fl485-datasheet

FL485:
RS-485 lightning protector, 4500V protection
