Bộ chuyển đổi 4 cổng RS-232 sang Ethernet NP304T-4D(RS-232)

2.170 lượt xem

Support 10/100M Ethernet

Support 4 Port RS-232

Support WEB and Telnet configuration

Support TCP, UDP, ARP, ICMP, DHCP and DNS protocol

Support TCP Server, TCP Client, TCP Auto, UDP and

Real COM driver working mode

Support UDP multicast and UDP subnet mode

Support heartbeat time and time over disconnect function

Support cross-gateway and cross-router communication

Support virtual serial COM port access and Network interruption automatic recovery

Provide Windows configuration tools for easy to use, easy to bath install.

Industrial grade design, IP30 protection grade

No fan, low consumption design

Working temperature: -40～85℃

Yêu cầu báo giá

Giới thiệu

Bộ chuyển đổi 4 cổng RS-232 sang Ethernet NP304T-4D(RS-232)

NP304T-4D(RS-232) is an high performance, industrial grade serial to Ethernet server, it can satisfy some kinds of customer requirements in consumption, temperature, volume and handle ability. It provides 4 port RS232 (RS-232 connector: RJ45) and 1 port 10/100Base-Tx Ethernet, can focus manage disperse serial device, master through network, easy, convenience. In application, can configure, upgrade through WEB.
Moreover, NP304T-4D(RS-232) provide strong function configuration tools based in Windows platform, it can guide user configure the device step by step, all configurations are coming true by WEB or Telnet, support cross-gateway and cross-router, user can can flexible configure IP address, server and client mode, data bag size etc.
NP304T-4D(RS-232) adopts EMC protection design, can work in rugged environment

Thông số kỹ thuật

Ethernet port
Standard: 10Base-T, 100Base-TX
Protocol: Support TCP, UDP, APR, ICMP and DHCP
Signal: Rx+, Rx-, Tx+, Tx-
Speed: 10/100Mbps
Working: Full-duplex and half duplex
Working mode: Support TCP Server and Client
Transfer distance: 100m
Connector: RJ45
RS-232 port
RS-232 port number: 4
RS-232 signal: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
Parity bit: None, Even, Odd, Space, Mark
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1bit, 1.5bit, 2bit
Band rate: 300bps～115200bps
Loading: point to point
Transfer distance: no more than 15m
Connector: RJ45
Protection: class 4 static
LED Indicator
Working statue indicator: RUN
Power (PWR)
Ethernet port connection statue (Link)
RS232 port transmit data indicator: TX1~TX4
RS232 port receive data indicator: RX1~RX4
Power supply
Input voltage: 12VDC(9~48VDC)
No-load consumption:1.05W@12VDC
Full-load consumption: 1.16W@12VDC
Environment limits
Working temperature: -40~85℃
Storage temperature: -40~85℃
Relative humidity: 5%~95%（non-condensing）
Mechanical
Shell: IP30 protection, metal shell
Installation: Wall mounting
Weight: 460g

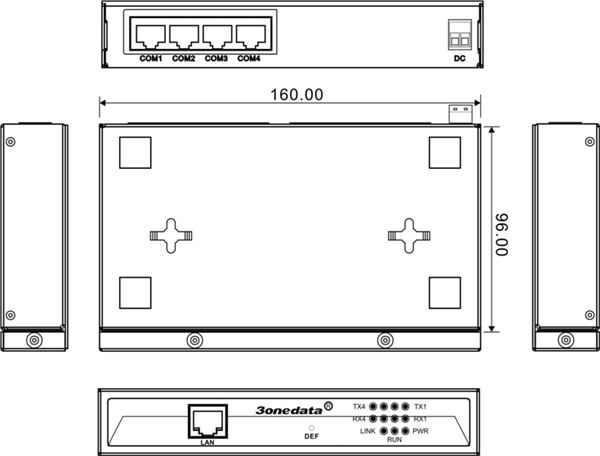

Size (L×W×H): 160mm×95.5mm×28mm
Standard
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty time: 3 years
Certificates
CE, FCC, RoHS, UL508(pending)
