Bộ chuyển đổi 8 cổng RS-485-422 sang Ethernet Modbus Gateway GW1108-8DI(RS-485)

1.509 lượt xem

Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS protocol

Support 1 port 10/100M Ethernet

Support 8 Port RS-485/422

Support WEB and Telnet configuration

Convert between Modbus TCP and Modbus RTU/ASCII

Support RTU Slave, RTU Master, ASCII Slave, ASCII Master four operating modes

Support ID mapping function, to achieve the management of the host ID

300bps~115200bps baud rate and nonblocking communication

Support IP address and MAC address filtering function

Slave mode support 16 TCP master connections

Master mode support 32 slave TCP connection requests

Support Response Timeout and Interval Timeout setting

Support cross-gateway and cross-router communication

IP30 protection grade, metal shell, wall mounted installation

No fan, low consumption design

Working temperature: -40～75℃

Yêu cầu báo giá

Giới thiệu

Bộ chuyển đổi 8 cổng RS-485-422 sang Ethernet Modbus Gateway GW1108-8DI(RS-485)

GW1108-8DI(RS-485) is an industrial Ethernet Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII protocols. It provides 8 port RS-485/422 serial(4 bit terminal block) and 1 port 10/100M Ethernet.
Modbus TCP, Modbus RTU and Modbus ASCII protocol are integrated in the products, users can easily realize the seamless integration of Modbus Ethernet devices and Modbus serial devices and even multi master and slave hybrid networks. At the same time, the user can be set up by Web or Telnet. The simple design can not only realize the fast application, but also guarantee the application of the entire real industrial environment.
The products using EMC protection design. Power has over current, over voltage protection, and can work in rugged environment. The design supports 2 kinds of wall mounting installation, easy to use for your projects

NOTHING

Thông số kỹ thuật

Ethernet port
Standard: 10Base-T, 100Base-TX
Protocol: Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, APR, ICMP, DNS and DHCP
Signal: Rx+, Rx-, Tx+, Tx-
Speed: 10/100Mbps
Working: Full-duplex and half duplex
Transfer distance: 100m
Connector: RJ45
Serial port
Serial port number: 8 ports RS-485/422
RS-485 signal: D+ (A), D- (B)
RS-422 signal: T+, T-, R+, R-
Parity bit: None, Even, Odd, Space, Mark
Data bit; 7bit, 8bit
Stop bit: 1bit, 2bit
Baud rate: 300bps～115200bps
RS-485/422 transfer distance: 1200m
RS-485/422 connector: 4 bits terminal block
Protection: class 3 static, RS-485/422 side, 2KV isolation
Master mode: 32 TCP slaves
Slave mode: 16 TCP masters
Work mode: RTU Slave, RTU Master, ASCII Slave, and ASCII Master
LED Indicator
Power (PWR)
Device start delay and running status indicator: RUN
Ethernet port connect status (Link)
Serial port data indicator: TX1~TX8, RX1~RX8;
Power requirements
Input voltage: 9~48VDC
No-load consumption: 1.8W@12VDC
Full-load consumption: 2.2W@12VDC
Environment limits
Working temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95%（non-condensing）
Mechanical
Shell: IP30 protection, metal shell
Installation: Wall mounting
Weight: 0.49kg

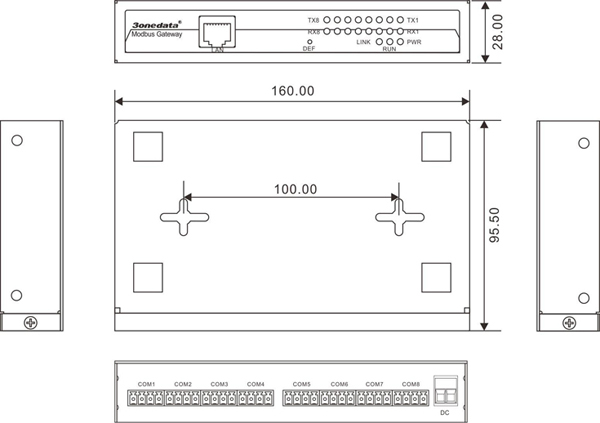

Size (L×W×H): 160mm×95.5mm×28mm
Standard
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 61000-4-2 (ESD), Level 3
EN61000-4-4 (EFT), Level 2
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty time: 3 years
Certificates
CE, FCC, RoHS, UL508 (pending)
Packing List
1. GW1108-8DI(RS-485)-P(9~48VDC) ×1
2. User manual ×1
3. Straight network cable ×1
4. Power adapter ×1
5. CD ×1
6. Warranty card ×1
7. Certificate of quality×1
8. Hanger ×2
9. Mat ×4
Optional accessories:
DIN-Rail Mounting Kit (35mm) ×1
