Bộ chuyển đổi quang điện 8 cổng RS-485 sang 2 cổng quang IMF208-2F-8DI

1.965 lượt xem

Support 8 channel RS-485

Support 2 port 100Base-FX Fiber

Support dual(single) Ring line, ST/SC/FC optional

Support Redundancy ring, recovery time＜20ms

Support 0bps~115200bps

Support Windows serial driver procedure format

Provide Windows configuration tools, easy to use and install

Support 3 types power supply input

Industry grade design, IP30 protection level

No fan, low consumption design

Working temperature:-40℃-75℃

Storage temperature: -40℃-85℃

Yêu cầu báo giá

Giới thiệu

Bộ chuyển đổi quang điện 8 cổng RS-485 sang 2 cổng quang IMF208-2F-8DI

IMF208-2F-8DI(RS-485) is a high performance, unmanaged, redundancy ring RS485 to fiber converter, it used in industry application. It supports point to point two fiber port backup for each other, Fiber line(Ring) transmission, supports 8 channel RS-485(RS-485 adopted 5 bits terminal block) and 2 port 100Base-FX fiber port, meantime, 2 fiber port support redundancy ring function, network fault recovery time＜20ms, it can easy and convenience manage the disperse serial device, main engine through serial port, take the intelligent redundancy for your network.
It has high performance exchange engine, low consumption design, 2 different type power supply input and overload current and voltage protection. It special designed for industry high available data communication in power automation, industry automation, transportation, telecommunication area etc.
It supported wall mounting and rack mount installation, easy to use for your project.

NOTHING

Thông số kỹ thuật

RS-485

Channel of RS-485: 8

RS-485 signal: D+（A）,D-(B)

Parity: None, Even, Odd, Space, Mark

Data bits: 5bit, 6bit, 7bit, 8bit

Stop bits: 1bit, 1.5bit, 2bit

Baud rate: 0bps～115200bps

Direction: Automatic detect data control

Loading: 32 nodes

Transfer distance: 1200m

Protection: 1.5KVAC isolation

Connection: 5 bit terminal block

Connector

RS-485: 5 bit 5.08mm separation distance terminal block

Optic fiber port: 100Base-FX, SC/FC/ST optional

Transmission

RS-485: 1200m

Multi-mode: 1310nm, 2Km

Single mode: 1310nm, 20/40/60Km

1550nm, 20/40/60/80/100/120Km

LED indicator

COM1~COM8 running: COM1~COM8

Device running: RUN

Master/slave statues: M/S

Optic fiber port (PORT1,PORT2) connection statues: LINK1, LINK2

Power supply

Power supply input: 12~48VDC

No-load consumption: 3.696W@24VDC

Full-load consumption: 3.792W@24VDC

Mechanical characteristic

Shell: IP30, metal case

Installation: Wall mount or rack mount

Weight: 647.4g

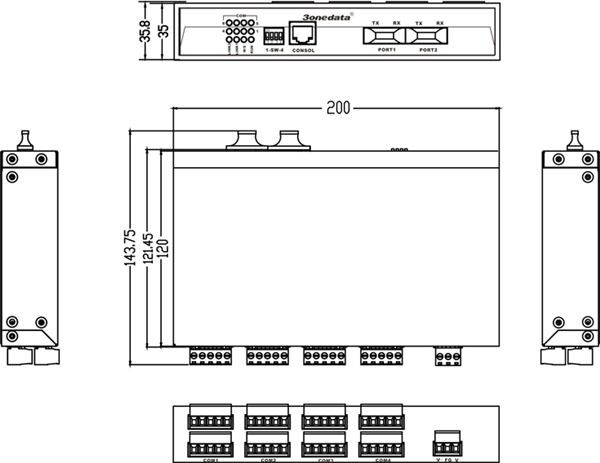

Dimension(L×W×H): 200mm×120mm×35mm

Environment

Working temperature: -40℃～75℃

Storage temperature: -40℃～85℃

Working humidity: 5%～95%( no condensation)

Standard

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Shake: IEC 60068-2-6

Warranty

Warranty time: 3 years

Certification

CE, FCC, RoHS, UL508(Pending)

Thông tin đặt hàng

IMF208-2F(M)-8DI:

8 port RS-485 to 2 port optic fiber converter, redundancy, multi-mode 2Km, SC/ST/FC optional, 12~48VDC

IMF208-2F(S)-8DI:

8 port RS-485 to 2 port optic fiber converter, redundancy, single-mode 20Km, SC/ST/FC optional, 12~48VDC

IMF208-2F(SS)-8DI:

8 port RS-485 to 2 port optic fiber converter, redundancy, single-mode, single fiber 20Km, SC/ST/FC optional, 12~48VDC
