Bộ Chuyển Đổi Quang Điện Công Nghiệp 1 cổng Quang + 2 Cổng Gigabit Ethernet IMC102GT-1GF

Bộ Chuyển Đổi Quang Điện Công Nghiệp 1 cổng Quang + 2 Cổng Gigabit Ethernet IMC102GT-1GF

1.Support 2 10Base-T/100Base-TX/1000 Base-TX port and 1 1000Base-FX port
2.Support IEEE802.3/802.3u/802.3x/802.3z, store and forward
3.Ethernet port support 10/100/1000M self-adaption
4.Support LFP    (Link Fault Pass-Through)
5.DC12~48V power input, reverse connection protection
6.IP40 protection grade, high strength iron shell, DIN Rail installation

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Interface:
Gigabit Ethernet port:10Base-T/100Base-TX/1000Base-TX Self-adaption
Gigabit fiber port: 1000Base-F(SC/FC/ST)
Transmission:
Twisted pair: 100M (Standard CAT5/CAT5e cable)
Multi mode fiber: 1310nm, 500m
Single mode fiber: 1310nm, 20/40/60Km
1550nm,20/40/60/80/100/120Km
Exchange of attribute:
100M forward speed: 148810pps
1000M forward speed: 1488100pps
Transmission: Store and forward
Memory: 1Mbits
MAC address: 1K
LED Indicator:
System running indicator: RUN
Power supply indicator: PWR
RJ45 Link/Act indicator: G1,G2
Optic Fiber Link/Act indicator: FX
Power supply:
Power input: 24VDC(12～48VDC)
Terminal block: 3 bits 7.62mm terminal block
No-load power consumption:1.34W@24VDC
Full-load power consumption: 2.86W@24VDC
Support reverse connection protection
Mechanical:
Shell: IP40, high strength iron shell.
Installation: DIN Rail
Weight: 346.6g

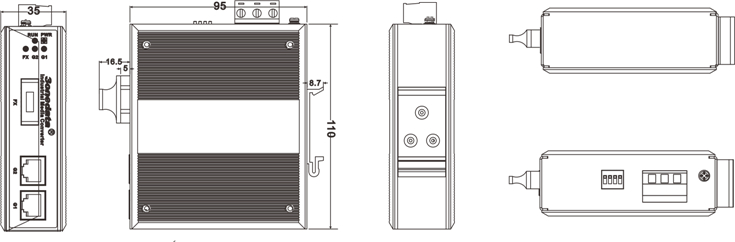

Dimension(W×H×D): 110mm×35mm×95mm
Environmental:
Operating Temperature: -40 to 85°C
Storage Temperature: -45°C to 85°C
Ambient Relative Humidity:
10 to 95% (non-condensing)
Standard:
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Level 4
EN61000-4-4 (EFT), Level 1
EN61000-4-5 (Surge), Level 3
Shell: IEC 60068-2-27
Warranty:
Warranty time: 5 years
Certification：
CE, FCC, RoHS, PAL, UL508(pending)
Packing list
1. 3onedata Industrial Gigabit Media Converter IMC102GT-1GF(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
