Switch Công Nghiệp 8 Cổng Gigabit Ethernet ES208G

Switch Công Nghiệp 8 Cổng Gigabit Ethernet ES208G

ES208G is a kind of unmanaged Industrial gigabit Ethernet switch, it support 8 port 10/100/1000M RJ45 port, DC power supply (12-48V). It adopted no fan, low power consumption design, IP30, corrugate high strength iron shell, the performance is more steadily. ES208G accorded with CE, FCC standard and Industrial 4 grades, DIN rail installation and wide operating temperature (-25~70℃), it can satisfied some kinds of industrial environment, it can provide reliable and quickly solution for your Ethernet device.

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 16G
MAC address table: 8K
Memory: 1M
Interface
Gigabit Ethernet port: RJ45 connector, 10Base-T/100Base-TX/1000Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
Transfer distance
Twisted cable: 100m (standard CAT5/CAT5e cable)
LED indicator
Electric port: G1-G8(Link/ACT)
Power supply: PWR
Power supply
Power input：24VDC(12～48VDC)
Type of input: 3 bits 7.62mm terminal block
Support non-polarity connection
Support over-current protection 4.0A
Consumption
No-load power consumption:0.816W@24VDC
Full-load power consumption: 3.648W@24VDC
Working environment
Working temperature: -25～70℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: DIN-Rail mounted
Weight: 616g

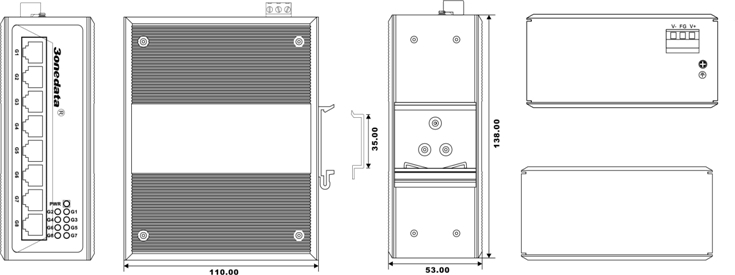

Dimension(W×H×D): 138mm×53mm×110mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Level 2
EN61000-4-3 (RS), Level 2
EN61000-4-4 (EFT), Level 2
EN61000-4-5 (Surge), Level 2
EN61000-4-6 (CS), Level 2
EN61000-4-8, Level 2
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 3 years
Packing list
1. 3onedata Industrial Ethernet Switch IES208G(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
