Switch Công Nghiệp 5 Cổng Gigabit Ethernet IES205G

1.057 lượt xem

Support 5port 10/100/1000M Ethernet port (RJ45)

Support IEEE802.3/802.3u/802.3z/802.3ab

Support 10/100M/1000M Ethernet, full/half duplex, MDI/MDI-X self-adaption.

Redundant 24VDC(12～48VDC) power input, built-in over-current protection,reverse connection protection

-25～70℃ operating temperature

No fan, low power consumption design

IP30 protection grade, high strength iron shell

Yêu cầu báo giá

Giới thiệu

Switch Công Nghiệp 5 Cổng Gigabit Ethernet IES205G

IES205G is a kind of gigabit unmanaged Industrial Ethernet switch, it support 5 port 10/100/1000M RJ45 port, DC power supply (12-48V). It adopted no fan, low power consumption design, IP30, corrugate high strength iron shell, the performance is more steadily. IES205G accorded with CE, FCC standard and Industrial 4 grades, DIN rail installation and wide operating temperature (-25~70℃), it can satisfied some kinds of industrial environment, it can provide reliable and quickly solution for your Ethernet device.

Thông số kỹ thuật

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 12G
MAC address table: 1K
Memory: 1M
Interface
Gigabit Ethernet port: RJ45 connector, 10Base-T/100Base-TX/1000Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
Transfer distance
Twisted cable: 100m (standard CAT5/CAT5e cable)
LED indicator
Interface indicator: Link(1-5)
Power indicator: PWR
Power supply
Power input：24VDC(12～48VDC)
Type of input: 3 bits 7.62mm terminal block
Support over-current protection
Support reverse connection protection
Consumption
No-load power consumption: 0.7W@24VDC
Full-load power consumption: 3.6W@24VDC
Working environment
Working temperature: -25～70℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95%(no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: DIN-Rail mounted
Weight: 350g

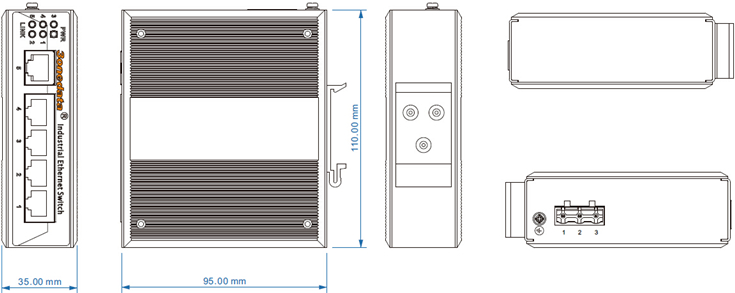

Dimension(W×H×D): 102 mm×91mm×35mm
Industry Standard
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES205G(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
