Train Dispatching Command System

Application speed, reliability and safety of industrial Ethernet solution in rail transit automation is an important factor for the economic and efficient operation of rail transit system. Modern rail transit system is composed of many omplex distributed subsystems. These subsystems need to realize centralized monitoring, 3onedata provides efficient, stable and reliable communications products to ensure the operation and management of the whole intelligent system.

1.Subway on-board PIS system

2.Subway station AFC system

3.Subway station CCTV system

4.Subway traction power SCADA system

5.Railway Communication Dispatching System

Key Products:

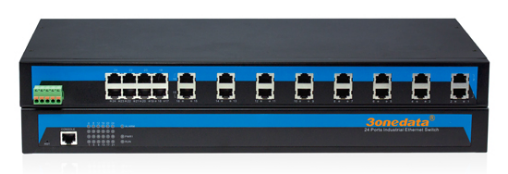

IES5024

24 port 10/100M Ethernet

Industrial 4 class design

Wide temperature design:-40~75

IES618-2F

6 port 10/100M Ethernet+2 port 100M optic fiber Industrial 4 class design

Wide temperature design:-40~75

TNS5512-4GT-8POE-D

8 port 10/100M M12+4port gigabit M12

Unique interface DHCP, IP address appoint assignment

The rich network management function

Cascade port support Bypass

Comply with EN50155 standard, industrial 4 class design

MTBF>300,000 hours

Wide temperature design:-40~75
