Splitter 1 cổng Gigabit PoE Ethernet, 1 cổng Gigabit Ethernet PD101G-12V-30W

921 lượt xem

Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W), can supply power to PDs compliant with the two standards

The “ PoE data in” port supports a voltage range of 36-57V, can auto-response to the power supply from PSE power module

Supports 3 different DC output modes: 5V/9V/12V, can easily get devices that not support PoE power connected with PoE network devices.

Comes with 4 different types of DC plugs, can easily handle with different connections

Supports Circuit Isolation Protection, provides good protection for the PDs

Yêu cầu báo giá

Giới thiệu

Splitter 1 cổng Gigabit PoE Ethernet, 1 cổng Gigabit Ethernet PD101G-12V-30W

PD101G-12V-30W is Cost-efficient single-port IEEE 802.3af/at compliant PoE splitter, High-reliability performance,Work with IEEE 802.3af/at compliant PoE switch or PSE Injector,Can get separated data and power output from standard PoE cable and supply data and power separately for devices that not support PoE power.
PD101G-12V-30W Provides three different DC output: 5V/9V/12V, which enables it works with different kinds of end devices,Improves network flexibility and expansibility by solving the connection problem between PoE power supply and PoE-unsupported devices,Can be widely used in wireless city projects and Security Surveillance Industry.

NOTHING

Thông số kỹ thuật

Technology:
POE Standard: IEEE802.3af/at
Ports:
Fixed ports:2*10/100/1000M Base-T Ports(including one POE ports）
POE Pin-out: 1/2(+), 3/6(-); Customized 4/5(+), 7/8(-)
Physic Medium:
10/100Base-TX: UTP category 3/4/5 cables( Maximum 100m)
1000Base-T: UTP Category 5 cable( Maximum 100m)
Network Cable Deployment: Support Auto-MDIX function, can automatically identify straight forward cable and cross-over cable
Negotiation Pattern: Support port auto-negotiation function ( automatically negotiate transmission rate and Duplex modes)
Indicator light:
LED Indicator: Power indicator( green light)
Power:
Max Output Power(single port): 30W
Input Power Supply: DC48V/0.6A
Output Voltage: 5V/4.5A; 9V/2.3A; 12V/2A
DC Plugs: 5.5*2.1mm (outer diameter*inner diameter)
Working Environment:
Operation Temperature: -20~50°C
Storage Temperature: -40~70°C
Operation Humidity:10%～90%(non-condensing)
Storage Humidity:5%～90%(non-condensing)
Mechanical Properties:
Weight: 145g

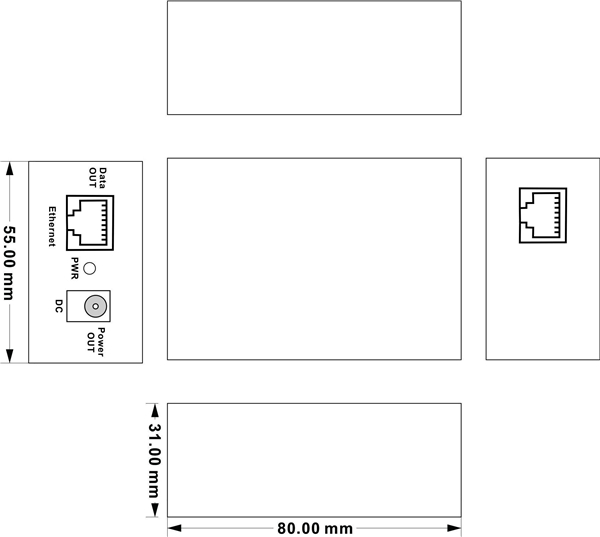

Dimensions(L×W×H): 80*55*31mm
Warranty:
Warranty time: 3 years
