Switch 8 cổng Gigabit PoE Ethernet ES1008G-8POE-150W

Switch 8 cổng Gigabit PoE Ethernet ES1008G-8POE-150W

ES1008G-8POE-150W is Full gigabit ,4-port Gigabit high power (IEEE 802.3at) PoE Switches，utilizing a compact factor which can be mounted in a 19-inch rack with rack-mounting kits or placed on desktop.
With data and power supported by one unit, the
ES1008G-8POE-150W-P(220VAC) shall reduce cables and
eliminate the need for dedicated electrical outlets on the wall,ceiling or any unreachable place. Auto PoE detection and Plug and play installation makes ES1008G-8POE-150W-P(220VAC) Gigabit PoE Switch easy to use and with clear LED indicators to tell the working condition.

Technology:
Standard and Protocols: IEEE 802.3af, Power Over Ethernet, IEEE 802.3at, Power Over Ethernet Plus
IEEE 802.3u, 100BASE-TX, IEEE 802.3ab, 1000 BASE-T, IEEE 802.3x, Full-Duplex Flow Control, IEEE 802.3az, EEE(Energy Efficient Ethernet)
POE Standard: IEEE802.3af/at
Port Flow control: Back-pressure traffic control under Half-Duplex mode, IEEE 802.3x traffic control under Full-Duplex mode
Ports:
Fixed ports: 8*10/100/1000M PoE Ports
PoE Pin-out: 1/2(+), 3/6(-); Customized 4/5(+),7/8(-)
Exchange Properties:
100M forwarding rate: 1488095pps
100M forwarding rate: 148809pps
10M forwarding rate: 14880pps
Transmit type: Full wire-speed storage and forwarding
MAC address: 8K, Support auto-update, two-way learning
Switching Capacity: ≥16Gbps
Spanning Tree: Spanning Tree Protocol
Rapid Spanning Tree Protocol(RSTP)
Port Flow Control:Back-pressure traffic control under Half-Duplex mode, IEEE 802.3x traffic control under Full-Duplex mode
Port Rate Restriction:Port-based ingress or egress rate limiting
Jumbo Frame: Maximum support 9216Byte
Physic Medium:
10/100Base-TX: UTP category 3/4/5 cables( Maximum 100m)
1000Base-T: UTP Category 5 cable( Maximum 100m)
Network Cable Deployment:Support Auto-MDIX function, automatically identify straight forward cable and cross-over cable
Negotiation Pattern: Support port auto-negotiation function( automatically negotiate transmission rate and Duplex modes)
Indicator light:
Interface light: Link/Act，POE Status
Power light: PWR
Power:
Input Power Supply: 90～264VAC/50～60Hz/150W
Energy Saving:Comply with “EEE” Energy Efficient Ethernet
Working Environment:
Working Temperature: -20~50°C
Storage Temperature: -40~70°C
Operation Humidity:10%～90%(non-condensing)
Storage Humidity:5%～95%(non-condensing)
Mechanical Properties:
Weight: <2Kg

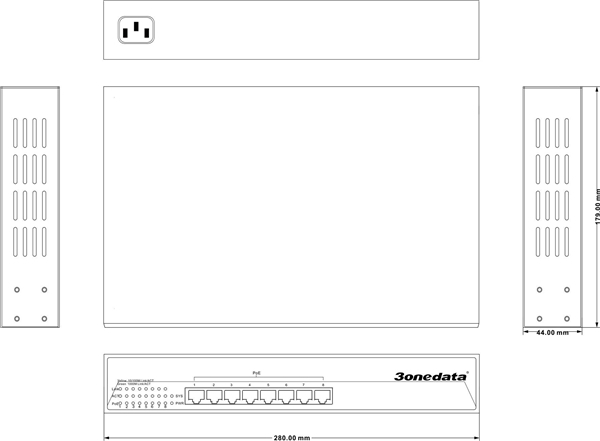

Dimensions(L×W×H):280×180×44mm
Warranty:
Warranty time: 3 years
