Switch công nghiệp 14 cổng Ethernet + 2 cổng quang + 4 cổng quang SFP IES3020-4GS-2F

603 lượt xem

Support 14 port 10Base-T/100Base-TX + 2 port 100Base-FX+ 4 port 1000Base-FX SFP

Support MAC address auto-learning, auto-aging.

Support 8K MAC address table

System exchange bandwidth: 11.2Gbps

Support redundancy power supply(12～48VDC), non-polarity

Support flow control

Support Broadcast storm suppression

Support 1ch relay alarm output

Working temperature: -40℃～75℃

DIN rail mounted

No fan, low consumption.

Metal shell, IP40 protection grade

Yêu cầu báo giá

Giới thiệu

Switch công nghiệp 14 cổng Ethernet + 2 cổng quang + 4 cổng quang SFP IES3020-4GS-2F

IES3020-4GS-2F is a unmanaged Industrial Ethernet switch with high performance, high cost-effective. It provided 14 port 10Base-T/100Base-TX Ethernet + 2 port 100Base-FX optic fiber + 4 port 1000Base-FX SFP slot. It supports auto flow control, full/half duplex mode and MDI/MDI-X self-adaption. It built in standard industry design, all components are based on Industry grade, no fan, low consumption, can satisfied some kinds of requirements of industry field, to achieve high reliability.

NOTHING

Thông số kỹ thuật

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 11.2G
MAC address table: 8K
Memory: 256K
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
1000M fiber port: 1000Base-FX (SFP port, LC connector)
Console port: Reserve
Alarm port: 2 bit 7.62mm terminal block,1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode: 1310nm, 2/5Km
Single-mode: 1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~16/G1~G4)
Power supply indicator: P1, P2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC(12～48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Overload current protect: 4.0A(DC)
Power supply support non-polarity
Consumption
No-load consumption: 5.86W@24VDC
Full-load consumption: 10.63W@24VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN-Rail mounted

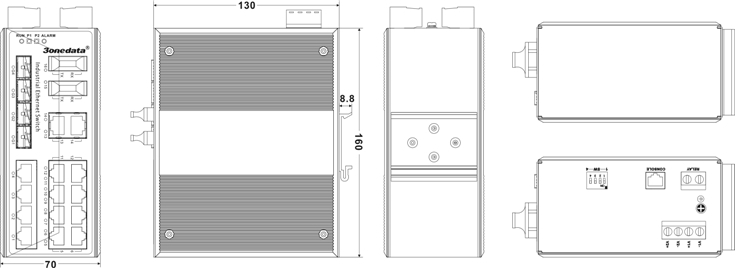

Size (W×H×D): 160mm×130mm×70mm
Weight: 1016g
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES3020-4GS-2F(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1

Thông tin đặt hàng

IES3020-4GS-2F(M):

14-port 10/100Base-T(X) + 2-port 100Base-FX Multi-mode SC/ST/FC + 4-port 1000Base-FX(SFP socket), 12~48VDC

IES3020-4GS-2F(S):

14-port 10/100Base-T(X) + 2-port 100Base-FX Single-mode SC/ST/FC + 4-port 1000Base-FX(SFP socket), 12~48VDC

IES3020-4GS-2F(SS):

14-port 10/100Base-T(X) + 2-port 100Base-FX Single-mode, single fiber SC/ST/FC+ 4-port 1000Base-FX(SFP socket), 12~48VDC
