Switch công nghiệp 14 cổng Ethernet + 2 cổng quang IES3016-2F

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 12.8G
MAC address table: 8K
Memory: 4M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
Console port: Reserve
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode:     1310nm, 2/5Km
Single-mode:   1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~16)
Power supply indicator: P1, P2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC (12~48VDC)
Type of input: 4 bits 7.62mm terminal block
Support DC dual power supply redundancy
Overload current protect: 1.2A
Consumption
No-load consumption: 6.12W@24VDC
Full-load consumption: 8.33W@24VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounted

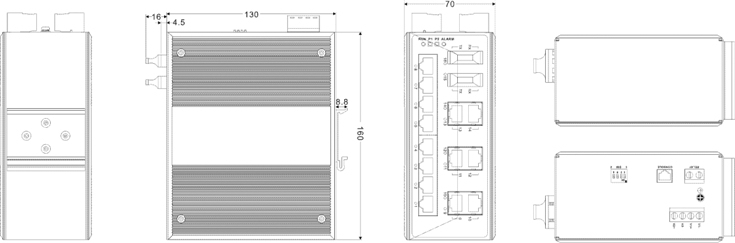

Size (W×H×D): 70mm×160mm×130mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES3016-2F(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
