Switch công nghiệp 16 cổng Ethernet + 4 cổng quang SFP IES3020-4GS

Switch công nghiệp 16 cổng Ethernet + 4 cổng quang SFP IES3020-4GS

IES3020-4GS is a unmanaged Industrial Ethernet switch with high performance, high cost-effective , it provided 16 port 10Base-T/100Base-TX Ethernet + 4 port 1000Base-FX SFP slot. It supports auto flow control, full/half duplex mode and MDI/MDI-X self-adaption. It built in standard industry design, all components are based on Industry grade, no fan, low consumption, can satisfied some kinds of requirements of industry field, to achieve high reliability.Switch công nghiệp 16 cổng Ethernet + 4 cổng quang Gigabit SFP IES3020-4GS

IES3020-4GS is a unmanaged Industrial Ethernet switch with high performance, high cost-effective , it provided 16 port 10Base-T/100Base-TX Ethernet + 4 port 1000Base-FX SFP slot. It supports auto flow control, full/half duplex mode and MDI/MDI-X self-adaption. It built in standard industry design, all components are based on Industry grade, no fan, low consumption, can satisfied some kinds of requirements of industry field, to achieve high reliability.

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 11.2G
MAC address table: 8K
Memory: 256K
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
1000M fiber port: 1000Base-FX (SFP port, LC connector)
Console port: Reserve
Alarm port: 2 bit 7.62mm terminal block,1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link (1~16/G1~G4)
Power supply indicator: P1, P2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC(12～48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Overload current protect: 4.0A(DC)
Power supply support non-polarity
Consumption
No-load consumption: 4.752W@24VDC
Full-load consumption: 9.854W@24VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN-Rail mounted

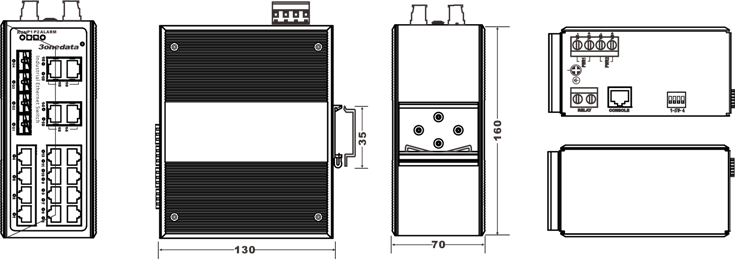

Size (W×H×D): 160mm×130mm×70mm
Weight: 1016g
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES3020-4GS(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
