Switch công nghiệp 16 cổng Ethernet IES1016

Giới thiệu

IES1016 series of industrial Ethernet switches consists of 16-port Ethernet switches that provide an economical solution for your industrial Ethernet connection.The IES1016 switches have an operating temperature range of -10 to 60°C, and are designed with low consumption and without fan. The rugged hardware design makes the IES1016 series perfect for ensuring that your Ethernet equipment can withstand the rigors of industrial applications.

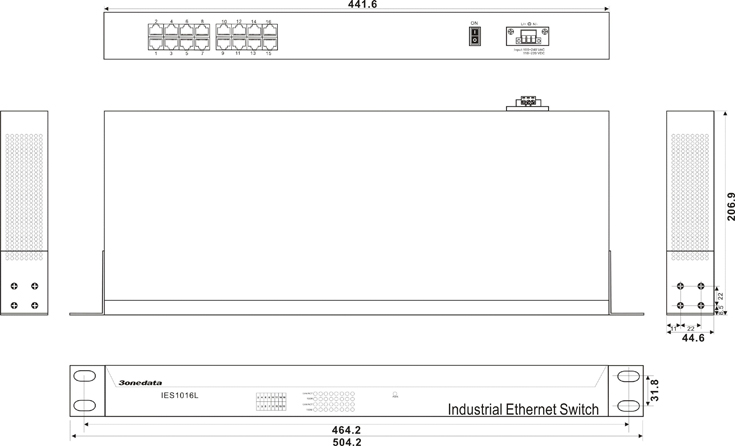

Kích thước

ies1016-kt

Ứng dụng

NOTHING

Thông số kỹ thuật

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 4.8G
MAC address table: 8K
Memory: 4M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link/Act (1~16)
Power supply indicator: PWR
Power supply
Input Voltage: DC100~300V or AC85~264V
Input Current: 0.1A
Overload Current Protection
Connection: 3 bit terminal block
Working environment
Working temperature: -10～60℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: 19” 1U rack
Size (W×H×D): 441.6×44.6×206.9mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES1016(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
5. Power cable × 1

Thông tin đặt hàng

IES1016:

16-port 10/100Base-T(X) Industrial Ethernet Switch, Rack mounted , DC100~300V or AC85~264V
