Switch công nghiệp 24 cổng Ethernet + 2 cổng quang ES1026-2F

Technology:

Standard: IEEE802.3, IEEE802.3u, IEEE802.3x

Flow control: IEEE802.3x, back pressure

Interface

Electric port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detection

100M fiber port: 100Base-FX, SC/ST/FC optional

Transfer distance:

Twisted cable: 100M（ standard CAT5/CAT5e cable）

Multi mode fiber:1310nm, 2Km

Single mode fiber: 1310nm, 20/40/60Km

1550nm, 80/100/120Km

LED indicator:

Power (PWR) indicator, RUN indicator, port status indicator

Exchange attribute:

100M forward speed: 148810pps

100M maximum filter speed:148810pps

Transmit mode: store and forward

MAC address table: 8K

System exchange bandwidth: 12.8G

Memory:4Mbits

Power supply

Input voltage: 100-240VAC/DC

Input mode: 4 bits terminal block

Consumption

No-load consumption: 4.2W

Full-load consumption: 6.7W

Working environment:

Working temperature: 0～70℃

Storage temperature:-40～75℃

Relative Humidity: 5%~95% (no condensation)

Mechanical Structure:

Shell: IP40 protect grade, metal shell

Installation: 1U 19 inch rack mount

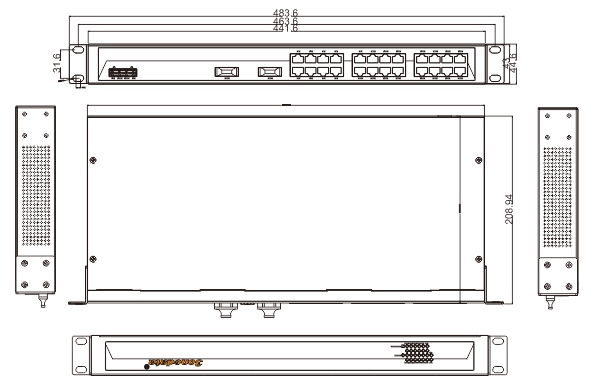

Size (W×H×D): 441.6mm×208.9mm×44.6mm

Certifications

FCC, CE, UL508 (pending)

EMI: FCC Part 15, CISPR (EN55022) class A

EMS:  EN61000-4-2 (ESD), Level 4

EN61000-4-4 (EFT) , Level 4

EN61000-4-5 (Surge) , Level 4

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Shake: IEC 60068-2-6

Warranty

Warranty time: 3 years
