Switch công nghiệp 24 cổng Fast Ethernet + 4 cổng Gigabit Ethernet IES5028M

859 lượt xem

Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3ab/z, IEEE802.1Q, IEEE802.1p, IEEE802.1D/W, IEEE802.3ad

SW-Ring ring network patent technology (Fault recovery time<20ms）

Support for the modular interface, the type of interface can be matched according to need

Support static multicast, IGMP Snooping and GMRP

Support Port based VLAN and IEEE 802.1Q VLAN

Support QOS absolutely and opposite priority

Support bandwidth management and storm suppression

Support WEB, SNMP and Telnet configuration

Support IEEE802.1X authentication and system log

Support port mirror and port trunking

Support port status display, data update.

Support configuration file up and download

Support redundancy power supply(100～240VAC/DC)

Support 1 channel relay alarm output

Industrial grade 4 design, -40-75℃ working temperature

IP30 protection grade, 19-inch rack mounting

No fan design

Yêu cầu báo giá

Giới thiệu

Switch công nghiệp 24 cổng Fast Ethernet + 4 cổng Gigabit Ethernet IES5028M

IES5028M is a high performance, cost-effective high-end intelligent modular switch which supports 24 Fast Ethernet Ports and 4 Gigabit Ethernet ports. This product provides 3 groups of 8 Fast Ethernet interface module, 1 groups of 4 Gigabit interface module. The type of interface can be matched according to need. The IES5028M is a gigabit managed industrial switches, by Shenzhen 3onedata technology Co., Ltd independent research. IES5028M switches provide senior management functions, such as: SW-Ring, virtual local area network, trunking, quality of service QoS, rate control, port mirroring, fault alarm and firmware online upgrade. SW-RingTM is an arithmetic designed as a rapid redundancy network. It provided recover technology for fault of rapid redundant network, the recovery time<20ms. Aiming at the security problems appearing in the LAN, the security function of 802.1x authentications is provided, and the visual WEB operation interface is provided.
Product accorded to CE, FCC standard and Industry grade 4 design requirement, support 2 channel power input and 1 channel relay alarm output, and -40～75℃ working temperature, can meet all kinds of Industrial environment requirement. It can use in power, water conservancy, transportation area etc.

NOTHING

Thông số kỹ thuật

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.3ad
Protocol: ARP, ICMP, TCP, DHCP, DNS, HTTP, Telnet, SW-Ring, RSTP, SNMP
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system
SW-Ring: Support Single, Couple, Chain, Dual homing
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 12.8G
MAC address table: 8K
Memory: 3M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
1000M fiber port: 1000Base-FX (SFP port, LC connector)
Console port: debug serial port carry out CLI command
Alarm port: 2 bit terminal block
1 channel relay alarm output
Current load capacity: 5A@250VAC
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode: 1310nm, 2/5Km
Single-mode: 1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~24/G1~G4)
Power supply indicator: PWR
Alarm indicator: Alarm
Power supply
Input Voltage: 100～240VAC/DC
Type of input: 8 bits terminal block
Overload current protection: 1.2A
Consumption
No-load consumption: 6W
Full-load consumption: 21W
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: 19” 1U rack

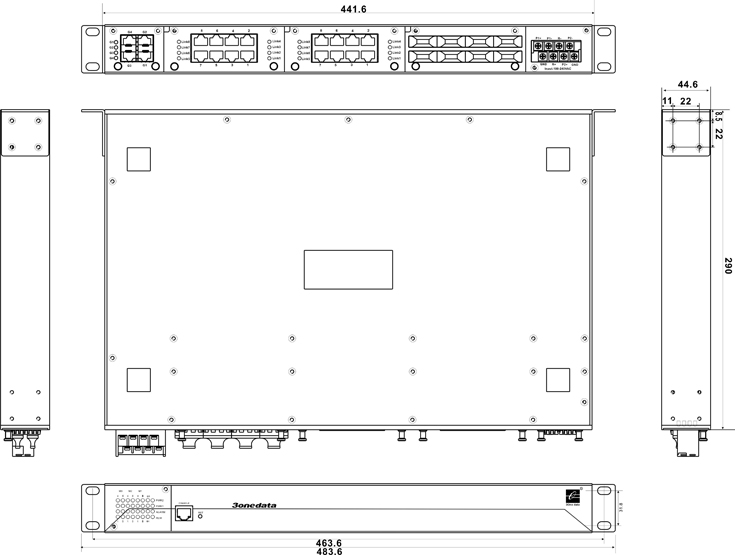

Size (W×H×D): 441.6mm×44.6mm×290mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES5028M × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1
6. Power cable × 1
