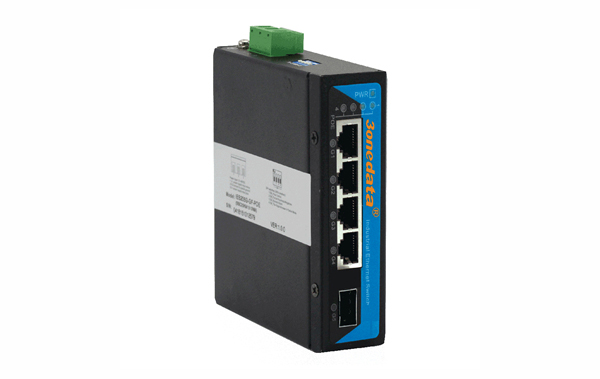

Switch công nghiệp 4 cổng Gigabit PoE Ethernet + 1 cổng quang SFP IPS205G-GS-4POE

543 lượt xem

Support 4 10/100/1000Base-TX port and 1 1000Base-X SFP port

Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.3af/at, store and forward

Support IEEE802.3af standard, full-port full 15.4W power supply

Support IEEE802.3at standard, single-port maximum 30W power supply

Ethernet port support 10/100/1000M self-adaption

4 Gigabit Ethernet port G1~G4 support POE function

DC48V power input, reverse connection protection

IP40 protect grade, high strength iron shell, DIN Rail installation

Industrial grade 4 design

Yêu cầu báo giá

Giới thiệu

Switch công nghiệp 4 cổng Gigabit PoE Ethernet + 1 cổng quang SFP IPS205G-GS-4POE

The IPS205G-GS-4POE switch is a kind of unmanaged industrial Gigabit PoE switch, it support 4 10/100/1000Base-T(X) ports and 1 Gigabit SFP port. The 4 Gigabit Ethernet port G1~G4 support Power-over-Ethernet (PoE) function. The IPS205G-GS-4POE switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional wiring.
It support CE, FCC standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input (48VDC). The switches support IEEE802.3/ IEEE802.3u/ IEEE802.3x with 10/100/1000M, full/half-duplex, and MDI/MDI-X auto-sensing, providing reliable and economic solution for your industrial Ethernet network.

NOTHING

Thông số kỹ thuật

Technology

Standard: Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.3af/at

Flow control: IEEE802.3x flow control, back press flow control

Exchange attribute

100M forward speed: 148810pps

1000M forward speed: 1488100pps

Transmit mode: store and forward

MAC address table: 1K

Memory: 1Mbit

Interface

RJ45 port: 10Base-T/100Base-TX/1000Base-TX Self-adaption, Half/full duplex and MDI/MDI-X auto detect

Gigabit SFP port: 1000Base-X SFP slot

POE Pin-out: 1/2(+), 3/6(-)

Transfer distance

Twisted cable: 100M (standard CAT5/CAT5e cable)

Multi-mode: 1310nm, 2Km

Single-mode: 1310nm, 20/40Km

1550nm, 60/80/100/120Km

LED indicator

Interface indicator: Link (G1~G5)

Power supply indicator: PWR

PoE indicator: POE (1~4)

Power supply

Input Voltage: 48VDC (44～55VDC)

Type of input: 3 bits terminal block

Consumption (full PD): <60W

Working environment

Working temperature: -40～75℃

Storage temperature: -40～75℃

Relative Humidity: 5%~95 %( no condensation)

Mechanical Structure

Shell: IP40 protect grade, metal shell

Installation: DIN-Rail or Wall mounts

Weight: 410g

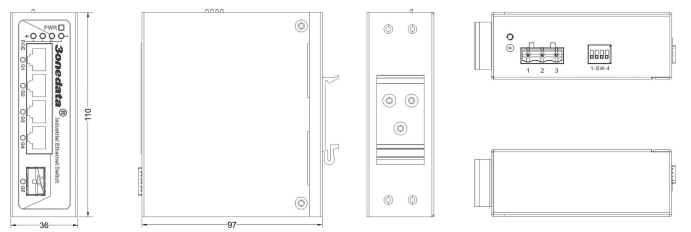

Size (W×H×D): 36mm×110mm×97mm

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS, UL508 (Pending)

Warranty: 5 years

Packing List

1. Industrial PoE Switch (plus terminal block) ×1

2. User manual ⅹ 1

3. Certificate of quality ⅹ 1

4. Warranty card ⅹ 1

5. DIN-Rail mounting kit ⅹ 1
