Switch công nghiệp 6 cổng Ethernet và 2 cổng quang IES308-2F

790 lượt xem

Advanced Ethernet Switch technology

IEEE802.3/802.3u/802.3x/802.3d,store and forward

Plug-and-play, 10/100M, F/H duplex, MDI/MDI-X auto negotiation

Broadcast storm protection

Relay output warning for power failure and port break alarm

Redundant 24VDC power input(12V～48VDC)

-40~75°C working temperature

Designed for industrial applications, IP40 protection grade, rugged high-strength metal case

Yêu cầu báo giá

Giới thiệu

Switch công nghiệp 6 cổng Ethernet và 2 cổng quang IES308-2F

IES308-2F series are a smart plug-and-play industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dustproof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
IES308-2F series supports 6 TP ports and 2 fiber ports. TP(RJ45) Support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.100BaseFX ports supports single/multi mode, SC/ST connector, optional.

Thông số kỹ thuật

Technology
Standard: IEEE802.3、IEEE802.3u、IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 2.0G
MAC address table: 2K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 850nm, 1310nm, 1550nm
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode: 850nm , 2Km ; 1310nm, 5Km
Single-mode: 1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~8)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC (12~48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support overload current protection
Relay
Current load capacity: 1A@30VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounted
Weight: 800g

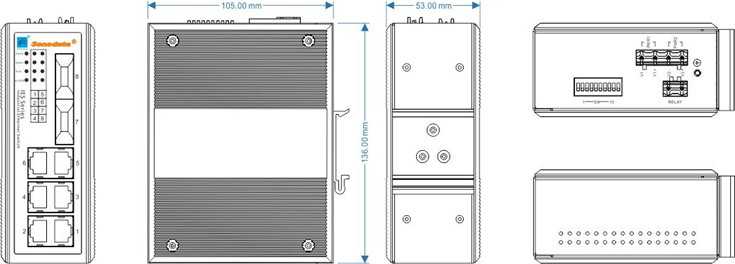

Size (W×H×D): 136 mm×52mm×105mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES308-2F(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1

Thông tin đặt hàng

IES308-2F(M):

6-port 10/100Base-T(X) + 2-port 100Base-FX Multi-mode SC/ST/FC , 12-48VDC

IES308-2F(S):

6-port 10/100Base-T(X) + 2-port 100Base-FX Single-mode SC/ST/FC , 12-48VDC

IES308-2F(SS):

6-port 10/100Base-T(X) + 2-port 100Base-FX Single-mode, single fiber SC/ST/FC , 12-48VDC
