Switch Công Nghiệp 6 Cổng Ethetnet + 2 Cổng Quang + 4 Cổng RS-232 IES618-2F-4D(RS-232)

1.932 lượt xem

Support 6 port 10/100Base-TX+ 2 port 100M fiber+ 4 port RS-232

Support SW-RingTM redundant network patent technology(Faulty recovery time<20ms)

Support IEEE802.1Q VLAN configuration, Control broadcast storm effectively

Support port bandwidth limited function, optimize bandwidth utilize

Support IEEE802.1p, QOS

Support RSTP

Support SNMP

Support based on socket application access

Support Sever, Client, UDP based mode and Sever, UDP advanced mode

Support Windows serial driver procedure mode

Support TCP, UDP, ARP, ICMP and DHCP protocol

Support cross-gateway and cross-router communication

Specific serial self-adapt function (Realcom)

Support Web, CLI, Telnet management

Support 2K MAC address table

Support 2 power supply input and 1 relay alarm output

Support port line and redundant network faulty/unusual, local and remote alarm

Support IGMP snooping, static multicast filter, port trunking and port mirroring

High strength iron shell, IP40 protection

Industrial 4 class design

Redundant 24VDC power supply input(12～48VDC)

-40～75°C working temperature

DIN-rail, wall mounting installation

Yêu cầu báo giá

Giới thiệu

Switch Công Nghiệp 6 Cổng Ethetnet + 2 Cổng Quang + 4 Cổng RS-232 IES618-2F-4D(RS-232)

IES618-2F-4D(RS-232) is a industrial, management, redundant industrial Ethernet switch and integrate 4 port RS-232 serial device server, it support 6 port 10/100M Ethernet(RJ45), 2 port 100M fiber, 4 port RS-232, 2 redundant 12~48VDC power input and 1 relay alarm output, it adopt SW-Ring redundant technology (Recovery time<20ms), users can set the redundant easily to increase network reliability, furthermore, it can also support numerous intelligent network management functions, like as IGMP, RSTP, 802.1Q VLAN, QOS, port trunking and port mirroring etc, It adopted no fan, low power consumption design, IP40, corrugate high strength iron shell, the performance is more steadily. It accorded with CE, FCC standard and Industrial 4 class, DIN rail installation and wide operating temperature (-40~75°C), it can satisfied some kinds of industrial environment, it can provide reliable and quickly solution for your Ethernet device.

NOTHING

Thông số kỹ thuật

Technology
Standard: IEEE802.3、IEEE802.3u、IEEE802.3x、IEEE802.1Q、IEEE802.1p、IEEE802.1D、IEEE802.1W
Protocol: ARP, ICMP, TCP, UDP, DHCP, DNS, HTTP, Telnet, SW-RingTM
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Function: SW-RingTM, QOS, 802.1Q VLAN, port-trunking, static multicast filter, port mirroring, Broadcast storm control, flow statistics, upgrade online, up and download configuration file
SW-RingTM: Single, Couple, Chain, Dual homing ring.
Serial device server: 4 port serial device server, each port support 4pcs TCP or UDP session connection
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 1.6G
MAC address table: 2K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 850nm, 1310nm, 1550nm
Console port: Procedure debug (RS-232), RJ45
Alarm port: 2 bit 7.62mm terminal block,
1 channel relay alarm output
Serial
RS-232 signal:TXD,RXD,RTS,CTS,DTR,DSR,GND
Parity: None,Even,Odd,Space,Mark
Data bit: 5bit,6bit,7bit,8bit
Band rate; 300～115200bps
Protection: isolation: 2KV, 15KV static protection.
Connector: DB9 male
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode fiber: 850nm , 2Km ; 1310nm, 5Km
Single mode fiber: 1310nm, 20Km, 1310nm, 40Km
1310nm, 60Km, 1550nm, 80Km
RS-232: 15m
LED indicator
Power supply indicator: P1, P2
Alarm indicator: Alarm
System indicator: Run
Ethernet port indicator: Link/Act（1-8）
Serial port indicator: TX(1-4), RX(1-4)
Power supply
Input voltage: 24VDC(12~48VDC)
Terminal block: 4 bits 7.62mm terminal block
Support inside over-current 4.0A protection
Support opposite connection protection
Consumption
No-load consumption: 3.2W@24VDC
Full-load consumption: 4.9W@24VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounting

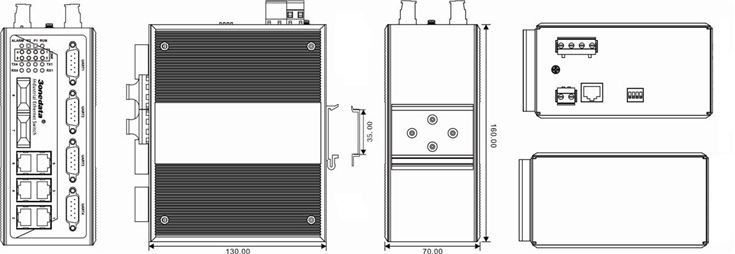

Dimension(W×H×D): 160 mm×70mm×130mm
Weight: 1021g
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508(Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES618-2F-4D(RS-232) × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1

Thông tin đặt hàng

IES618-2F(M)-4D(RS-232):

6-port 10/100Base-T(X) + 2-port 100Base-FX Multi-mode SC/ST/FC + 4-port RS-232, 12-48VDC

IES618-2F(S)-4D(RS-232):

6-port 10/100Base-T(X) + 2-port 100Base-FX Single-mode SC/ST/FC + 4-port RS-232, 12-48VDC

IES618-2F(SS)-4D(RS-232):

6-port 10/100Base-T(X) + 2-port 100Base-FX Single-mode, single fiber SC/ST/FC + 4-port RS-232, 12-48VDC
