Switch công nghiệp 7 cổng Ethernet + 3 cổng quang SFP IES7110-3GS

849 lượt xem

Support 7-port 10/100Base-T(x) and 3-port 1000Base-FX

SW-Ring(recovery time < 20 ms at full load)

Port-based VLAN, IEEE 802.1Q VLAN to ease network planning

Port Trunking for optimum bandwidth utilization

Lock port function for blocking unauthorized access based on MAC address

Store and forward.8k address. Support MAC address filtrate struction

Port mirroring for online debugging

Bandwidth management prevents unpredictable network status

Dual power backup, Relay output warning for power failure and port break alarm

Port link, ring fault/abnormity alarm indication

IP40 protection, rugged high-strength metal case

Redundant 24VDC power input (12V～48VDC) Operating

DIN-Rail or wall mounting optional

Yêu cầu báo giá

Giới thiệu

Switch công nghiệp 7 cổng Ethernet + 3 cổng quang SFP IES7110-3GS

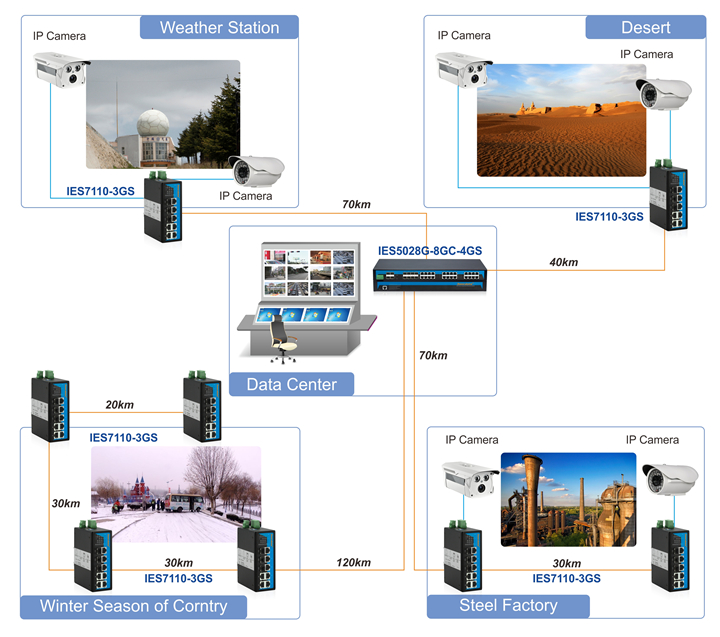

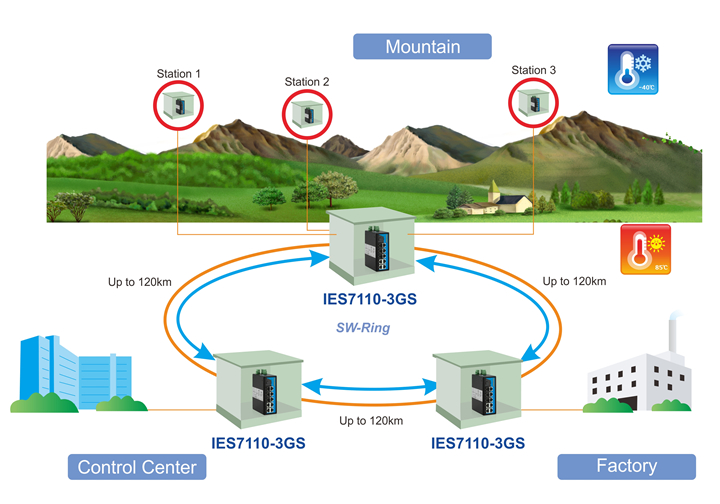

The IES7110-3GS Gigabit managed redundant industrial Ethernet switch is equipped with up to 3 Gigabit Ethernet ports(3-port SFP or 3-port GbE), making it ideal for building a Gigabit SW-Ring(No.8,No.9), but leaving a spare Gigabit port for uplink use. The Ethernet redundant SW-Ring (recovery time < 20 ms) can increase system reliability switches and the availability of your network backbone. The IES7110-3GS is designed with industrial standard, can be suited to the applications in different industrial environments.
The IES7110-3GS supports numerous intelligent network management functions, including such as QoS, VLAN, Port Trunking, velocity configuration and alarm enabling functions.

Thông số kỹ thuật

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Protocol: ARP, ICMP, TCP, DHCP, DNS, HTTP, Telnet, SW-Ring, RSTP, SNMP
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system
SW-Ring: Support Single, Couple, Chain, Dual homing
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 7.4G
MAC address table: 8K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
1000M fiber port: 1000Base-FX (SFP port , LC connector)
Console port: debug serial port carry out CLI command
Alarm port: 2 bit 7.62mm terminal block
1 channel relay alarm output
Load ability:1A@24VDC
Transfer distance
Twisted cable: 100M(standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link (1~7/G1~G3)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm
Power supply
Input Voltage: 12～48VDC
Type of input: 4 bits terminal block
Overload current protect: 4.0A(DC) or 5.0A(AC)
Support dual power supply redundancy
Support reverse polarity protection
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN-Rail or wall mounting optional

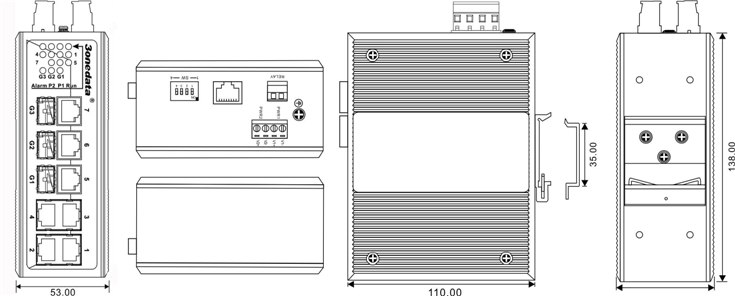

Size (W×H×D): 138mm×53mm×110mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES7110-3GS(plus terminal block) × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1
6. DB9 to Rj45 console port cable × 1
7. DIN-Rail setting fittings(wall mounting optional)
