Switch công nghiệp 8 cổng Ethernet + 2 cổng quang SFP IES2010-2GS

Switch công nghiệp 8 cổng Ethernet + 2 cổng quang SFP IES2010-2GS

IES2010-2GS is a type of plug-and-play industrial unmanaged redundant Ethernet switch, which supports 8 * 10/100M ethernet ports and 2 gigabit ethernet ports (SFP slots). No fan, low consumption and industrial grade design. More steadily work capability. To satisfy applications in different industrial environments, IES2010-2GS can also provide wide temperature type in accommodation with limit temperature (-40 ~ 75°C).

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 5.6G
MAC address table: 8K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
1000M fiber port: 1000Base-FX (SFP port, LC connector)
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
LED indicator
Interface indicator: Link (1~10)
Power supply indicator: PWR
Power supply
Input Voltage: 24VDC(12～48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support over-current protection
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: DIN-Rail mounted

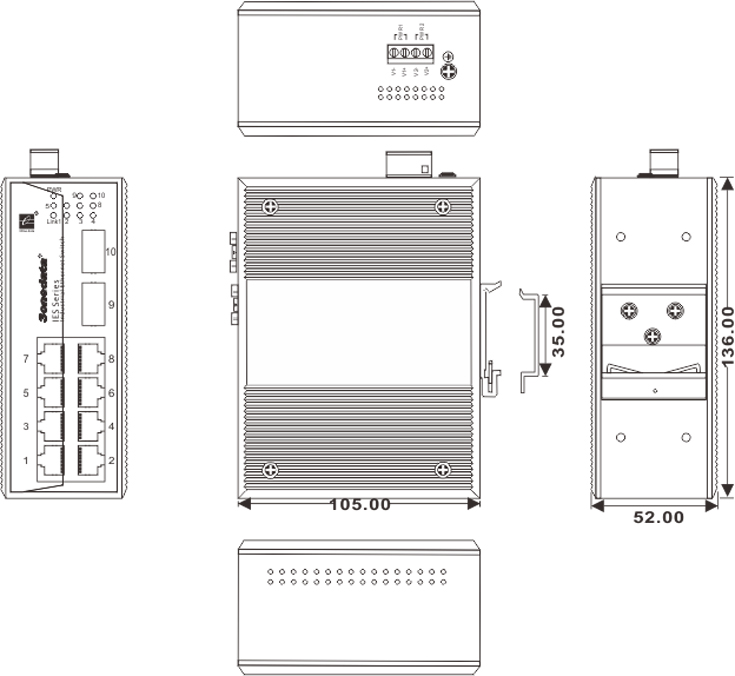

Size (W×H×D): 136mm×52mm×105mm
Weight: 800g
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES2010-2GS(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
