Switch công nghiệp 8 cổng PoE Ethernet IPS318-8POE

554 lượt xem

Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3af/at, store and forward

Support 8 10/100Base-T(x) PoE ports

Support IEEE802.3af standard, full-port(PoE) full 15.4W power supply

Support IEEE802.3at standard, single-port maximum 30W power supply

Ethernet port support 10/100M self-adaption

DC48V power input, reverse connection protection

Industrial grade design, -40-75℃work temperature

IP40 protection grade, DIN rail mounted

Yêu cầu báo giá

Giới thiệu

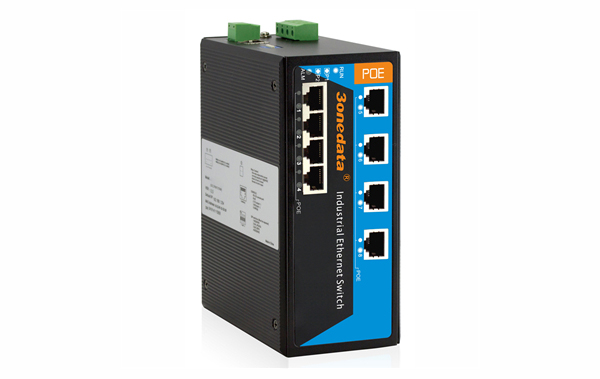

Switch công nghiệp 8 cổng PoE Ethernet IPS318-8POE

IPS318-8POE is an industrial grade, unmanaged and redundancy POE switch. The switch provides 8 ports 10/100M Ethernet, which supports POE function (IEEE 802.3af/at). The switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional wiring.
It support CE, FCC standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input (48VDC). The switch support IEEE802.3/ IEEE802.3u/ IEEE802.3x/ with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, the -40～75℃ working temperature, can meet all kinds of Industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.

NOTHING

Thông số kỹ thuật

Technology

Standard: Support IEEE802.3, IEEE802.3u, IEEE802.3x

Flow control: IEEE802.3x flow control, back press flow control

POE Standard: IEEE802.3af/at

Exchange attribute

100M forward speed: 148810pps

Transmit mode: store and forward

System exchange bandwidth: 7.6G

MAC address table: 8K

Memory: 1M

Interface

Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect

PoE Pin-out: 1/2(+), 3/6(-)

Console port: debug serial port carry out CLI command (no enabled)

Alarm port: 2 bit 7.62mm terminal block (no enabled)

1 channel relay alarm output

Transfer distance

Twisted cable: 100M (standard CAT5/CAT5e cable)

LED indicator

Run indicator: Run

Interface indicator: Link (1~8)

POE indicator: 1~8

Power supply indicator: P1, P2

Alarm indicator: Alarm

Power supply

Input Voltage: 44～57VDC

Type of input: 4 bits 7.62mm terminal block

No-load consumption: 7W@48VDC

Full-load consumption: 130W@48VDC

Single PoE port maximum consumption: 30W@48VDC

Working environment

Working temperature: -40～75℃

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)

Mechanical Structure

Shell: IP40 protect grade, metal shell

Installation: DIN rail mount

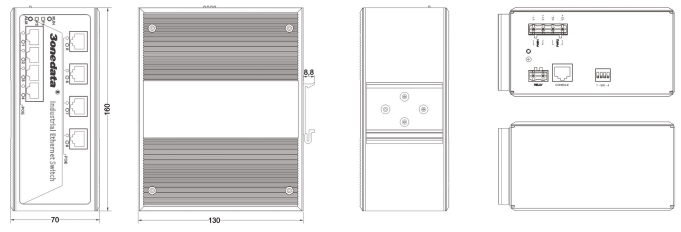

Size (W×H×D): 70mm×160mm×130mm

Weight: 1.2kg

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty: 5 years

Packing List

1. Industrial PoE Switch (plus terminal block) ×1

2. User manual ⅹ 1

3. Certificate of quality ⅹ 1

4. Warranty card ⅹ 1

5. DIN-Rail mounting kit ⅹ 1

Tài liệu hỗ trợ

Tài liệu kỹ thuật chính thức của IPS318-8POE — tải miễn phí, không cần đăng nhập.
