Bộ chuyển đổi FE1 sang Quang MODEL7302

1.381 lượt xem

Conforms to all relevant ITU series standards( ITU-T G.703 G.704 G.823)

Framing or non-framing mode in option

E1 time slot in arbitrary option

Balanced 120Ω/non-balanced 75Ω interfaces automatic

Support the loop back of local analog/digital interface

Support remote loop back function (valid on under framing mode)

Support pseudo-random code test function, providing convenience for the test of optic fiber line status

120km trunking -free transmission distance for single-mode optic fiber

Capable to be communicated with V.35 fiber modem

Available with complete line detection and alarm indications

Available with independent structure and 19-inch frame-mounted structure (frame-mounted structure can be inserted with 16 modules);

AC 220V and DC –48V inputs may be selected for fiber optic modems of both structures;

For frame-mounted fiber optic modems, dual power supply heat backup is provided to ensure a Receiving level：0~-43db

Yêu cầu báo giá

Giới thiệu

Bộ chuyển đổi FE1 sang Quang MODEL7302

MODEL7302 FE1 Fiber Modem is a high-performance E1 fiber optic modem developed by using a dedicated integrated circuit. It is to modulate a framing or non-framing E1 data signal directly into single- or multi-mode optic fiber for a transmission via optic cable line. At another end of the optic cable, optical signal is demodulated into a framing or non-framing E1 data signal. E1 interface may be directly connected with the E1 interfaces of image and data terminals or the WAN ports of MUX, exchanger and router for a dedicated network setup or a LAN connection.

NOTHING

Thông số kỹ thuật

Fiber Optic interface
Line mode type: CMI
Line mode rate: 2.048Mbps
Operating wavelength: 850nm,1310nm or 1550nm
Optic fiber connector: SC/PC
Applicable optic fiber: multi-mode, single-mode
Transmission distance: Single-mode:up to 120km
Multi-mode: up to 2km
E1 interface
Standard:ITU-T G.703 G.704
Frame structure:framing CCS(PCM31)/ CAS(PCM30)
Rate：N×64Kbps (N=1~31)or 2.048Mbps
Impedance: 75Ω, physical interface BNC;
120Ω, physical interface RJ45
Code:HDB3
Receiving level: 0~-43db
Indicator lamps:
To indicate the operating status of power supply, loopback and random code test, code missing alarm, out-of-frame alarm etc.
Structure
Independent: 140mm(depth) ×210mm(width) ×42mm(height)
Frame-mounted: 19in 4.5U standard casing
Power supply
Independent: 85V～264V AC input, 5V/2A output;
-36V～-72V DC input, 5V/2A output
Frame-mounted: 150V～260V AC input, 5V/16A ,12V/1A output
-38V～ -58V DC input, 5V/16A ,12V/1A output
Power consumption: 3W
Operating temperature: 0°C～50°C
Storage temperature: -20°C～80°C
Humidity: 5%～90% (free of condensate)
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals

Tài liệu hỗ trợ

Tài liệu kỹ thuật chính thức của MODEL7302 — tải miễn phí, không cần đăng nhập.

Switch công nghiệp

Switch PoE & Quang điện

Truyền dẫn E1 & Video

Kết nối nối tiếp

Phụ kiện & Tra cứu

Tự động hóa

Giao thông

An ninh

Năng lượng

Hợp tác

Hậu mãi

Tải về

Hỗ trợ sản phẩm

Tin tức

Về 3onedata

Bộ chuyển đổi FE1 sang Quang MODEL7302

Giới thiệu

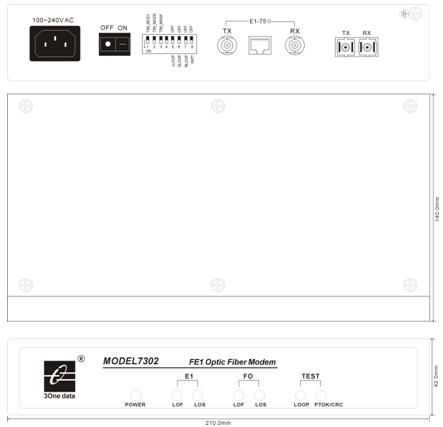

Kích thước
